KUBLER编码器8.KIH40.5462.0360技术参数
Type | 8.KIH40 |
Flange | 5 = with stator coupling, ø 46 mm [1.81“] |
Blind hollow shaft (insertion depth max. 18 mm [0.71“]) | 4 = ø 8 mm [0.32“] |
Output circuit / supply voltage | 6 = RS422 (with inverted signal) / 5 V DC |
Type of connection | 2 = radial cable, 2 m [6.56‘] PVC |
Pulse rate | 0360 = 360 pulses |
KUBLER编码器KIH40系列介绍
带有光学传感器的Sendix KIS40/KIH40增量式紧凑型编码器是为经济性而设计的，其分辨率高达每转2500个脉冲。来自Sendix技术的特殊细节可以在这些编码器中找到。这会产生对振动和安装误差的特殊抵抗力。它为成本敏感的应用程序制定了新的标准。广泛的性能范围开拓了许多应用领域，因此特别适用于狭窄的安装空间以及较小的机器和设备。
The Sendix KIS40 / KIH40 incremental compact encoders with optical sensors are designed for maximum economy and are available with a resolution of up to 2500 pulses per revolution. Special details from the sophisticated Sendix technology can be found in these encoders. This results in a special resistance to vibrations and installation errors. It sets new standards in cost-sensitive applications. The wide performance range opens up many fields of application and is therefore particularly suitable for narrow installation spaces as well as smaller machines and devices.

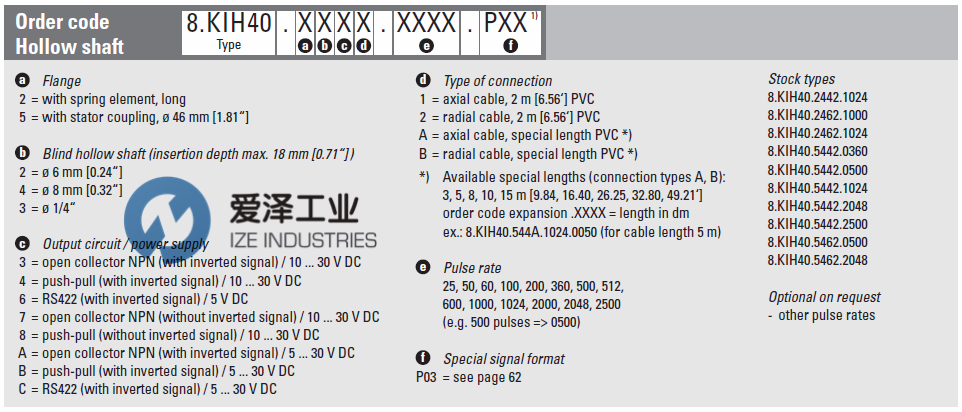

KUBLER编码器KIH40系列选型
KUBLER编码器KIH40系列其他常见型号：
KUBLER 8.KIH40.2442.1024
KUBLER 8.KIH40.2462.1000
KUBLER 8.KIH40.2462.1024
KUBLER 8.KIH40.5442.0360
KUBLER 8.KIH40.5442.0500
KUBLER 8.KIH40.5442.1024
KUBLER 8.KIH40.5442.2048
KUBLER 8.KIH40.5442.2500
KUBLER 8.KIH40.5462.0360
KUBLER INCREMENTAL ENCODERS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于KUBLER编码器8.KIH40.5462.0360的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for KUBLER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
KUBLER编码器KIH40系列8.KIH40.5462.0360技术参数及选型
