HYDAC流量变送器EVS3110系列技术数据
Technical data: | |
Input data | |
Measuring ranges 1) and operating pressure | 1.2 .. 20.0 l/min 400 bar |
Housing material | Stainless steel |
Output data | |
Output signal, permitted load resistance | 4 .. 20 mA, 2-conductor |
Accuracy | ≤ 2 % of the actual value |
Environmental conditions | |
Compensated temperature range | -20 .. +70 °C |
Operating temperature range | -20 .. +70 °C |
Storage temperature range | -40 .. +100 °C |
Fluid temperature range | -20 .. +90 °C |
mark | EN 61000-6-1 / 2 / 3 / 4 |
Protection class acc. to DIN EN 60529 2) | IP 65 (Binder male connector 714 M18) |
Other data | |
Measuring medium 3) | Water-based media |
Viscosity range | 1 .. 100 cSt |
Calibration viscosity | 5 cSt |
Supply voltage | 10 .. 32 V DC |
Residual ripple of supply voltage | ≤ 5 % |
Note: 1) Other measuring ranges on request. | |
HYDAC流量变送器EVS3110系列介绍及选型
The flow rate transmitters of the EVS-3110 series (stainless steel series) are specially conceived for utilisation in hydraulic and other fluid technology plants. They operate in accordance with the turbine principle, which means that the rpm of an impeller wheel rotating in the flow of the media is recorded and converted into a 4 ... 20 mA analogue signal. For this the EVS 3110 stainless steel series is generally equipped with a hard metal bearing of the impeller wheel and can also be used in pulsating, dynamic media flows thanks to the resulting enhanced robustness. Two additional G1/4 threaded bore holes in the turbine housing provide the flow rate transmitter with additional connection options, e.g. for temperature and pressure sensors.
The flow rate transmitters of the EVS 3110-H series with HSI sensor detection were specially developed for use in conjunction with the HYDAC measurement devices HMG 500, HMG 510, HMG 3000 and CMU 1000. For data transmission purposes, the EVS 3110-H devices are equipped with an HSI interface (HYDAC Sensor Interface). Thanks to this, the HSI sensors are recognised completely automatically by the HYDAC measurement devices listed above and all necessary basic device settings are then immediately undertaken automatically.
Pressure-resistant up to 400 bar (depending on the version)
Viscosities from 1 ... 100 cSt
Output signal 4 ... 20 mA
Additional connection of temperature and/or pressure sensors possible
EVS-3110 系列（不锈钢系列）的流量变送器专门设计用于液压和其他流体技术工厂。它们按照涡轮原理运行，这意味着在介质流中旋转的叶轮的转速被记录并转换为 4 ... 20 mA 模拟信号。为此，EVS 3110 不锈钢系列通常配备叶轮的硬金属轴承，由于增强的坚固性，也可用于脉动的动态介质流。涡轮机外壳中的两个额外 G1/4 螺纹钻孔为流量变送器提供了额外的连接选项，例如：用于温度和压力传感器。
带有 HSI 传感器检测功能的 EVS 3110-H 系列流量变送器专为与 HYDAC 测量设备 HMG 500、HMG 510、HMG 3000 和 CMU 1000 结合使用而开发。出于数据传输目的，EVS 3110-H 设备配备HSI接口（HYDAC Sensor Interface）。由于这一点，HSI传感器被上面列出的 HYDAC 测量设备完全自动识别，然后立即自动进行所有必要的基本设备设置。
耐压高达 400 bar（取决于版本）
粘度从 1 ... 100 cSt
输出信号 4 ... 20 mA
可以额外连接温度和/或压力传感器

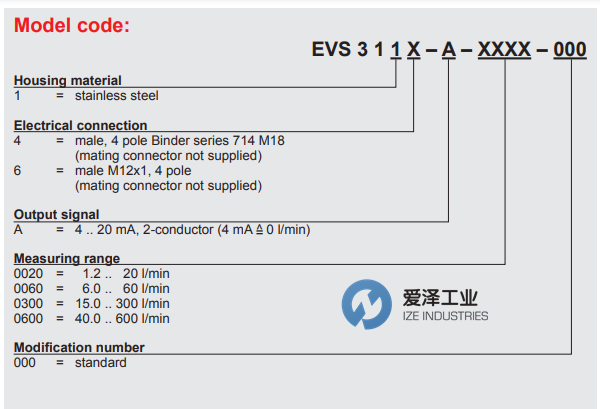

HYDAC流量变送器EVS3110系列其他型号列举：
HYDAC EVS 3116-A-0020-000
HYDAC EVS 3116-A-0060-000
HYDAC EVS 3116-A-0300-000
HYDAC EVS 3116-A-0600-000
HYDAC Flow transmitter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于HYDAC流量变送器EVS3106-A-0020-000的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for HYDAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
HYDAC流量变送器EVS3110系列EVS3106-A-0020-000规格描述
