BEI IDEACOD编码器HS35F系列技术参数
Mechanical | |
Shaft Bore | 1.00, 0.875", 0.750", 0.625", 0.500". |
Allowable Misalignments | 0.005* TIL.R. on mating shaft 0.75* from shaft end |
Bore Runout | 0.001 T.L.R. maximum |
Starting Torque at 25°C | Through shaft version (SS)= 7 in-oz (maxl;, |
Bearings | 52100 SAE High carbon steel |
Shaft Material | 416 stainless steel |
Bearing Housing | Die cast aluminum with protective fnish |
Cover | Die cast aluminum with protective finish |
Bearing Life | 7.5 X 109 revs (0.000 hrs at 2500 RPM) |
Maximum RPM | 6,000 RPM (see frequency response above) |
Moment of Inertia | 0.019 ozin-sec2 |
Weight | 18 oz. typical |

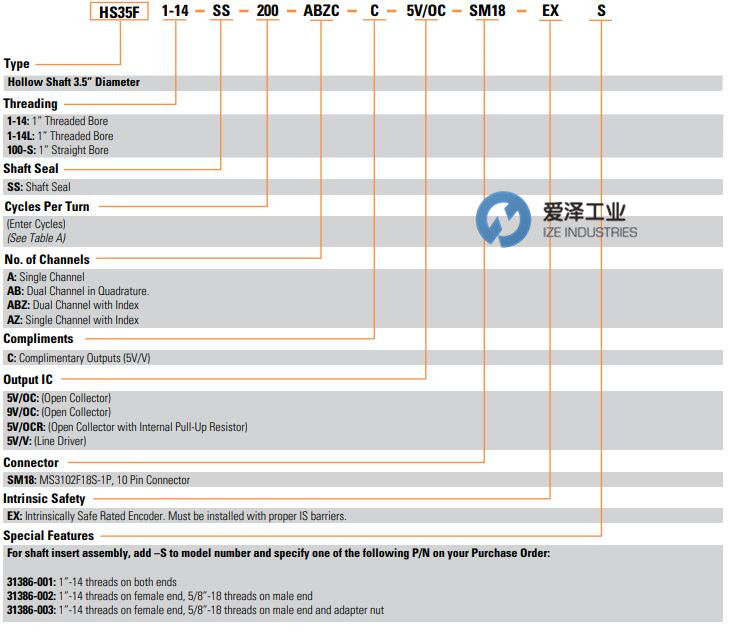

BEI IDEACOD编码器HS35F系列介绍及选型
这种经过特殊配置的DrawWorks Model HS35编码器将坚固耐用的重型功能组合到独特的通轴样式中，用作石油钻机DrawWorks系统中的绞盘计数器。 它包含用于NEMA 4和13（IP65）等级的双轴承和轴封，硬质阳极氧化金属外壳和密封连接器。 它带有一个标准的1“ -14直径螺纹连接和一个可转换适配器，可用于带有5/8” -18螺纹连接的系统。 当安装有适当的挡板时，此编码器具有UL，cUL和ATEX / CENELEC本质安全等级（请参阅本规格表背面的BEI P / N 924-60004-XXX系列）。 这种屏障是高性能的，经电气隔离，并获得了美国和欧洲机构的认可。 无论气体和粉尘类型如何，它都适用于所有危险场所。
This specially configured DrawWorks Model HS35 encoder combines rugged, heavy-duty features into a unique through-shaft style for use as a winchturns counter in the DrawWorks system of oil rigs. It incorporates dual bearings and shaft seals for NEMA 4 and 13 (IP65) ratings, a hard anodized metal housing and a sealed connector. It comes with a standard 1”-14 diameter threaded connection and a convertible adapter that allows its use in systems with a 5/8”-18 threaded connection. This encoder has an UL, cUL, and ATEX/CENELEC intrinsically safe rating when installed with the proper barriers (refer to BEI P/N 924-60004-XXX series on the back of this specification sheet). This barrier is high performance, galvanically isolated and carries US and European agency approvals. It is suitable for ALL Hazardous locations, regardless of gas and dust types.
BEI IDEACOD编码器HS35F系列其他常见型号：
BEI IDEACOD HS35F-1-14-SS-200-ABZC-C-5V/OC-SM18-EX-S
BEI IDEACOD HS35F-1-14-SS-200-ABZC-C-5V/V-SM18-EX-S
BEI IDEACOD HS35F-100-R2-SS-1024-ABZC-5V/V-SM18-EX 01075-111
BEI IDEACOD HS35F-100-R2-SS-500-ABC-5V/V-SCS18-EX
BEI IDEACOD HS35F-1-14L-R2-SS-500-AB-5V/OC-TB-EX-S
BEI IDEACOD HS35F-100-SS-1024-ABZC-28V/V-SM18-S
BEI IDEACOS Encoders NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于BEI IDEACOD编码器01075-058的疑问，请随时与我们电联，（021-3100 6702），我们将尽全力解决您的问题。
If you have any question for BEI-IDEACOD products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
BEI IDEACOD编码器HS35F系列01075-058参数介绍
