AVTRON编码器AV44AB3K1A4XX984技术参数
Code | AV44AB3K1A4XX984 S4J06001 |
Series | AV44 |
Shaft | A – 11mm w/key; Ceramic Bearings |
Flange | B – B10 Euroflange (w/shaft “1” or “A”) |
Connector | 3 – M23/12 pin (CW pin #s Reverse Phasing |
Marker Gating | K – ¼ AB Cycle, Sync w/A&B High |
Line Driver | 1 – 6-30V in/out (Hx–Hi Power) |
PPR (Single) | A4 – 2048 |
PPR (Dual) | XX – None |
Mods | 984 – Custom Cable Length^ |
AVTRON编码器AV44系列介绍
Avtron™ 编码器型号 AV44 实心轴增量编码器是一种速度和位置增量传感器（也称为转速表或脉冲发生器）。当安装到电机或机器上时，其输出与相对轴位置（脉冲计数）或速度（脉冲率）成正比。AV44 采用磁感应技术，可在零速下运行，可用于控制和仪表应用。AV44 编码器提供 2 相输出（A、B），相隔 90°，用于方向感应，具有补码（/A、/B）以及标记脉冲和补码（Z、/Z）。
AV44 的外壳采用坚固的铸铝制成，表面采用耐用的粉末涂层，电子元件完全封装，以防风雨。AV44 是一种法兰安装编码器，可采用行业标准“B10 欧式法兰”或“PY”法兰/轴配置，或安装在脚架上进行耦合，可用于广泛的工业应用。 AV44 不推荐用于滑轮或链传动应用。
AV44 具有诊断套件，包括自适应电子设备和用于本地状态指示的红色/橙色/绿色 LED。还提供故障检查输出。使用此套件，AV44 可以自我维护，并在出现问题之前发出警报，以免问题导致非计划停机。
The Avtron™ Encoders model AV44 Solid Shaft Incremental Encoder is a speed and position incremental transducer (also known as a tachometer or pulse generator). When mounted to a motor or machine, its output is directly proportional to relative shaft position (pulse count) or speed (pulse rate). The AV44 employs magnetic sensing technology and operates down to zero speed, and it can be used for both control and instrumentation applications. The AV44 encoder offers 2-phase outputs (A, B) 90° apart for direction sensing, with complements (/A, /B) and with marker pulse and complement (Z, /Z).
The AV44’s housing is rugged cast aluminum with a durable powder coat finish, and the electronics are fully encapsulated to protect against the elements. The AV44 is a flange-mounted encoder available with industry standard “B10 Euro-flange” or “PY” flange/shaft configurations or on a foot-mount bracket for coupling for use in a wide range of industrial applications. AV44 is not recommended for pulley or chain drive applications.
The AV44 has a diagnostic package that includes Adaptive Electronics and red/orange/green LED for local status indication. A Fault-Check output is also available. With this package the AV44 can maintain itself and provide an alarm if there is a problem before the problem causes unscheduled downtime.

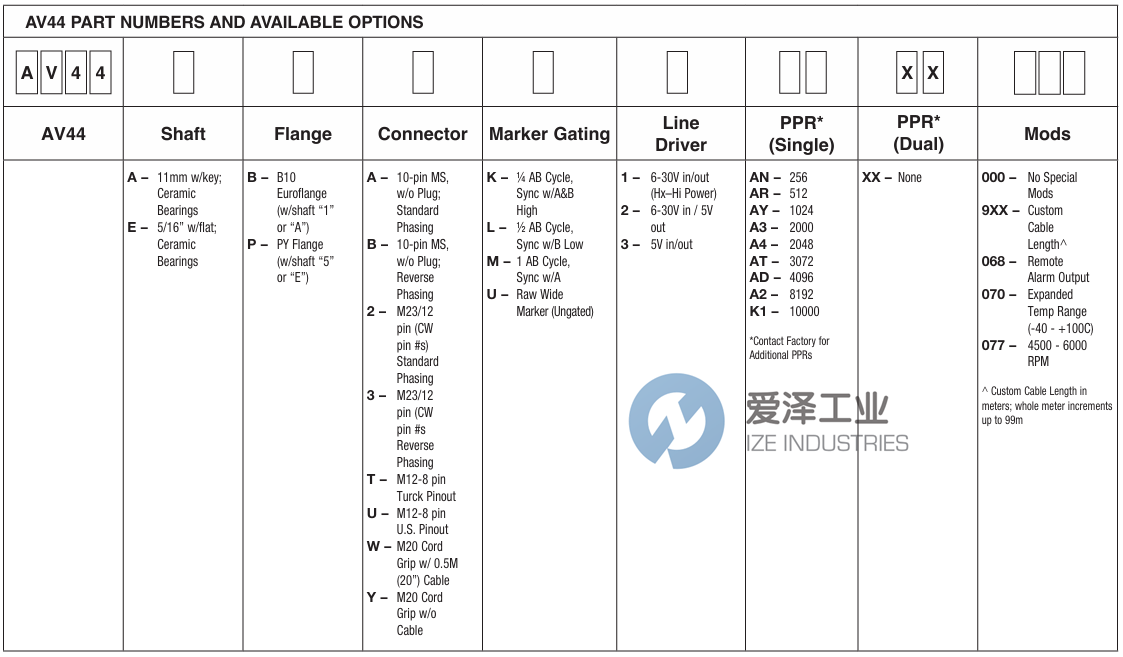

AVTRON编码器AV44系列选型
AVTRON编码器AV44系列其他常用型号：
AVTRON AV44AB3K1ANXX984
AVTRON AV44AB3K1ARXX984
AVTRON AV44AB3K1AYXX984
AVTRON AV44AB3K1A3XX984
AVTRON AV44AB3K1A4XX984
AVTRON AV44AB3K1ATXX984
AVTRON AV44AB3K1ADXX984
AVTRON AV44AB3K1A2XX984
AVTRON AV44AB3K1K1XX984
