ANDERSON-NEGELE液位传感器NVS-143/200/X/X/X技术参数
Code: | NVS-143/200/X/X/X |
Types: | [ NVS-14 ] connecting head ø 55 mm with cable gland M16x1.5 |
Rod: | [3/200] uncoated 200 mm, ø 4 mm (3-A compliant, EHEDG approval) |
Evaluation unit: | [X] without |
High-temperature version: | [X] standard, only for sensors without evaluation unit and type-specific process temperatures |
Wire-break monitoring: | [X] without |
ANDERSON-NEGELE液位传感器NVS系列介绍
带螺纹 G1/2″ (CLEANadapt) 的金属容器/管道中的导电极限检测
• 可靠地检测金属管道和容器中的水性和导电介质的满/空
• 带集成电子元件的单杆传感器
• 电极可根据需要缩短
• 可单独缩短和扭转杆
• 传感器头 55mm
Conductive limit detection in metallic vessels/pipes with hygienic thread G1/2″ (CLEANadapt)
• Reliable full / empty detection of aqueous and conductive media in metallic pipes and vessels
• Single rod sensor with intergrated electronics
• Electrodes can be shortened as required
• Individual shortening and twisting of the rods possible
• Sensor head 55mm

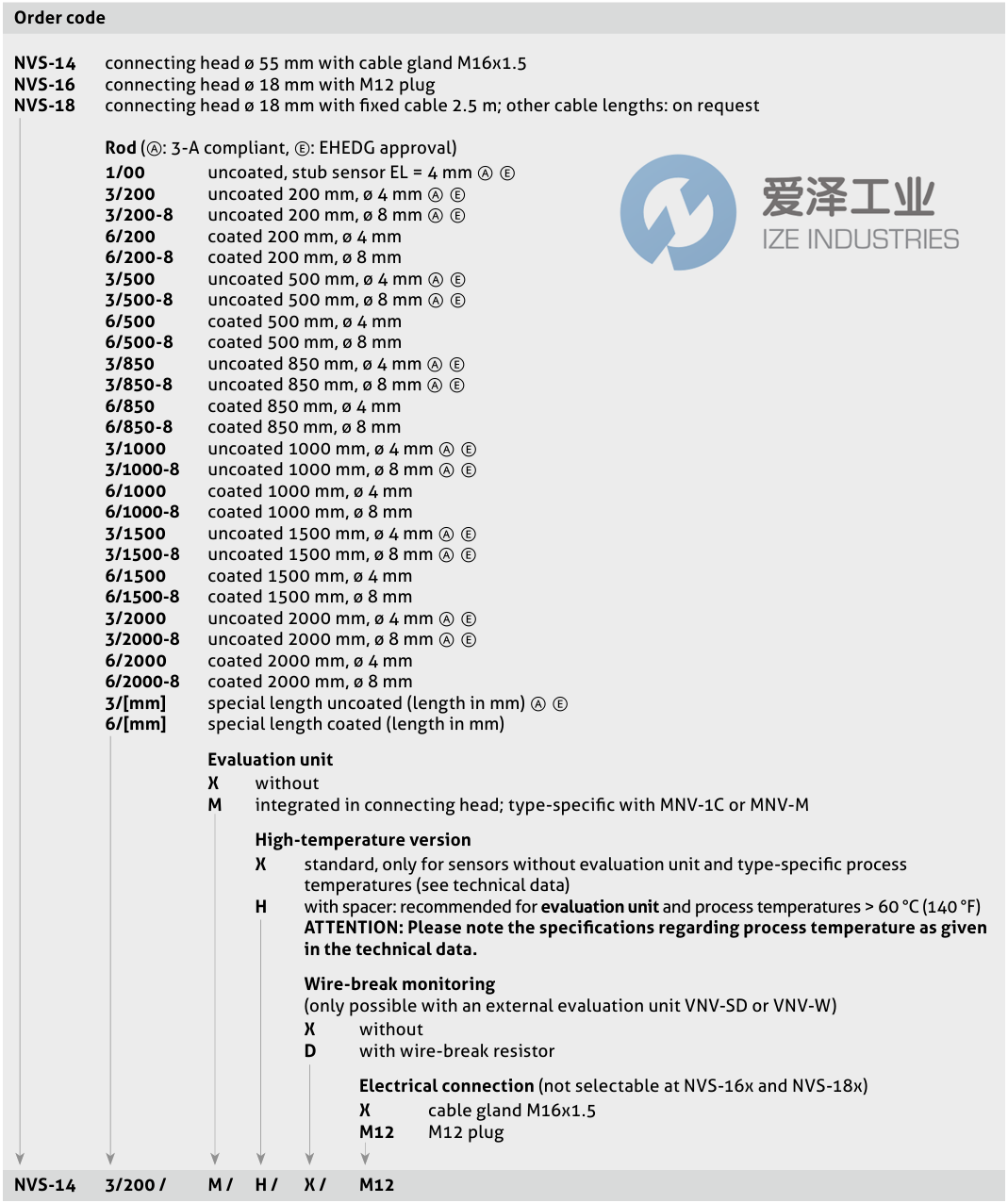

ANDERSON-NEGELE液位传感器NVS系列选型
ANDERSON-NEGELE液位传感器NVS系列其他常用型号：
ANDERSON-NEGELE NVS-143/200/X/X/X
ANDERSON-NEGELE NVS-143/200/M/H
ANDERSON-NEGELE NVS-143/1000/X/X/M12
ANDERSON-NEGELE NVS-146/200/X/X/X
ANDERSON-NEGELE NVS-146/200/M/H100/X
ANDERSON-NEGELE NVS-146/500/X/X
ANDERSON-NEGELE NVS-146/500/M/X
ANDERSON-NEGELE NVS-146/500/M/H
ANDERSON-NEGELE NVS-146/500/M12
ANDERSON-NEGELE NVS-146/500-8/MH
ANDERSON-NEGELE NVS-146/1500/MH/M12
ANDERSON-NEGELE POINT LEVEL SENSOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ANDERSON-NEGELE液位传感器NVS-143/200/X/X/X的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ANDERSON-NEGELE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
ANDERSON-NEGELE液位传感器NVS系列NVS-143/200/X/X/X技术参数及选型
