KISTLER压力传感器6182B系列技术参数
Technical data | |
Measuring range bar | 0 … 2 000 |
Overload bar | 2 500 |
Sensitivity pC/bar | ≈-2.5 |
Linearity, all ranges % FSO | ≤±1 |
Operating temperature range | Mold (sensor, cable, connector) °C: 0 … 200 |
Insulation resistance | at 20°C TΩ: >10 |
KISTLER压力传感器6182B系列介绍
用于测量模腔压力的微型石英传感器 6182B 型... 具有 2.5 mm 直径的前端面。单线电缆的横截面积较小,安装灵活。单线技术中的屏蔽由模具提供。因此,电缆和连接器必须集成在模具中。
对于多腔应用,传感器 6182B 型无需使用单线连接器 1839 型。多腔套件 6829A 型... 和多传感器系统 6831A 型... 在相应的数据表中进行了描述。
压力作用于传感器的整个前端,并传输到石英测量元件,产生成比例的电荷(pC = 皮库仑)。与电荷放大器一起使用时,可将其转换为 0 ... 10 V 电压。
• 非常适合工业应用
• 设计无隔膜,正面平坦且可加工
• 也可提供带涂层的正面,用于玻璃填充塑料
The miniaturized quartz sensor for mold cavity pressure Type 6182B... has a 2,5 mm diameter front face. The small cross sectional area of the single-wire cable allows flexibility of in stallation. Shielding in the single-wire technology is pro vided by the mold. It is therefore essential for the cable and connec tor to be integrated in the mold.
For multi cavity applications the sensor Type 6182B is used without the single-wire connector Typ 1839. The Multi Cavity Set Type 6829A... and the Multi Sensor System Type 6831A... are described in the appropriate data sheets.
The pressure acts over the entire front of the sensor and is transmitted to the quartz measuring element, which produc es a proportional electric charge (pC = Picocoloumb). This is converted into a voltage 0 ... 10 V when used with a charge amplifier.
• Ideally suited for industrial applications
• Designed without a diaphragm and with a flat, machinable
front face
• Also available with coated front for glass filled plastics

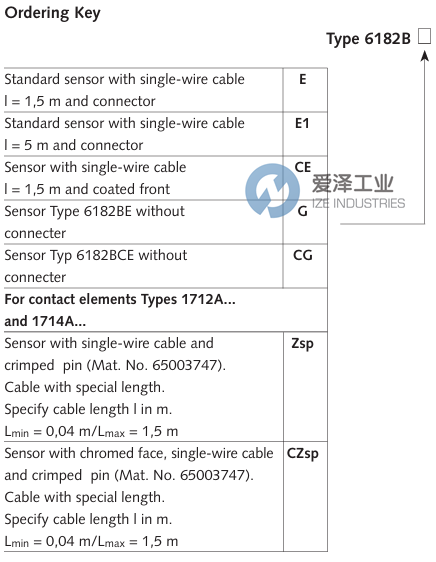

KISTLER压力传感器6182B系列选型
KISTLER压力传感器其他常用型号:
KISTLER 6182BCE
KISTLER 6182BE
KISTLER 6182B
KISTLER 6182D
KISTLER 6178C
KISTLER 6167AE
KISTLER 6165AA
KISTLER 6184A
KISTLER 6185AAG
KISTLER 6188AAG
