SETRA压力变送器290系列技术参数
Specifications | ||
Performance data | ||
2” Tri-clover sanitary fitting | 1.5” Tri-clover sanitary fitting | |
Accuracy RSS (at constant temp) | ±0.20% FS | ±0.20% FS |
Non-linearity (BFSL) | ±0.17% FS | ±0.15% FS |
Hysteresis | 0.10% FS | 0.12% FS |
Non-repeatability | 0.025% FS | 0.10% FS |
Thermal effects | ||
Compensated range °F(°C) | +20 to +180 (-7 to +82) | +20 to +180 (-7 to +82) |
Zero/ span shift %FS/100°F (%FS/50°C) | 2.0 (1.8) | 2.0 (1.8) |
Response time | 10 milliseconds | 10 milliseconds |
EMI/RFI effect | < 1.0% output shift; 10V/M, 10-300 MHz | < 1.0% output shift; 10V/M, 10-300 MHz |
Clamping effect, zero/span shift | ±0.15% FS | ±0.25% FS |
Maximum vacuum (without affecting specifications) | Half on ranges ≤15 PSI | Full on ranges ≥ 30 PSI |
Environmental data | ||
Operating temperature5 °F(°C) | -40 to +260 (-40 to +125) | |
Storage temperature °F(°C) | -65 to +260 (-55 to +125) | |
Vibration | 10g, 50-1000Hz | |
Acceleration | 10g maximum | |
Shock | 50g operating | |
Thermal Shock °F (°C) | 0 to +257 (0 to +125) negligible shift | |
Physical description | ||
Zero/Span Adjustments | Top access through seal screws | |
Case | Stainless steel | |
Electrical Connection | 1/2 NPT” conduit fitting & strain relief w/ 15’ shielded cable | |
Pressure Fitting | 2” or 1 1/2” Tri-clover sanitary fitting | |
Sanitary | Meets 3-A sanitary standard (74-02) | |
Vent | Through cable | |
Weight (Approx.) | 8 Ounces | |
Electrical data | ||
Circuit | 2-Wire | |
Output | 4 to 20 mA4 | |
Zero/span, adjustment | ± 0.5 mA | |
External load | 0 to 800 ohms | |
Min. supply voltage (VDC) | 12 + 0.02 x resistance of receiver plus line | |
Max. supply voltage (VDC) | 30 + .004 x resistance of receiver plus line | |
Approvals | CE | |
SETRA压力变送器290系列介绍
290 型是 Setra 高精度的解决方案，用于测量卫生加工应用中的表压和复合压力范围。与采用充油设计的竞争传感器不同，316L 不锈钢传感器的设计无需传感器内的中间液体即可运行。290 的设计消除了夹紧效应，使安装和维修比竞争对手更快、更容易。其体积小巧、精度高（±0.2% FS），涵盖了广泛的压力范围，既符合 3A 认证，又能承受 CIP/SIP 环境条件，是各种应用的选择。
• 高精度：±0.2% FS
• 坚固的非液体填充电容式传感器
• 夹紧效应可忽略不计，易于安装
• 专为就地清洗 (CIP) 和就地灭菌 (SIP) 安装而设计
• 1.5 英寸和 2 英寸三叶草配件
• 高过压保护
• 对热冲击不敏感
The Model 290 is Setra’s highest accuracy solution for measuring gauge and compound pressure ranges in sanitary processing applications. Unlike competitive transducers which use an oil filled design, the 316L stainless steel sensor is designed to operate without the need for an intermediary liquid within the sensor. The design of the 290 negates clamp effect making installation and service faster and easier than the competition. Its small footprint and accuracy (±0.2% FS) covers a wide range of pressure ranges that meet both 3A certification and withstand CIP/SIP environmental conditions, making it ideal for a variety of applications.
• High Accuracy: ±0.2% FS
• Robust Non-Liquid Filled Capacitive Sensor
• Negligible Clamping Effect for Easy Installation
• Designed for Clean-In-Place (CIP) and Sterilize-In-Place SIP) Installations
• 1.5" and 2" Tri-Clover Fittings
• High Overpressure Protection
• Not Sensitive to Thermal Shock

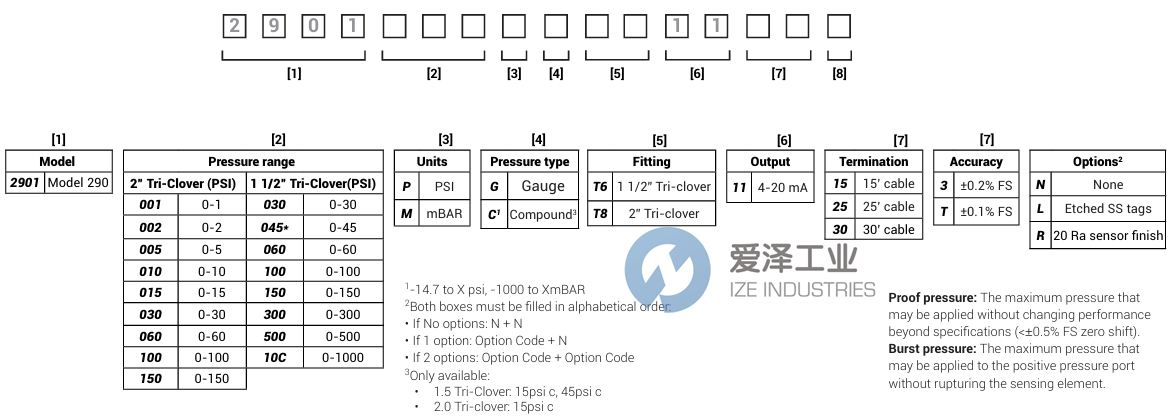

SETRA压力变送器290系列选型
