SETRA差压传感器264系列技术参数
Specifications | |
Performance data | |
Accuracy RSS (at constant temp) | ±1.0% FS (standard); |
Non-linearity, BFSL | ±0.96% FS (standard); |
Hysteresis | 0.10% FS |
Environmental data | |
Operating temperature ºF (ºC) | 0 to +175 (-18 to +79) |
Storage temperature ºF (ºC) | -65 to +250 (-54 to +121) |
Electrical data (voltage) | |
Circuit | 3-Wire (Com, Out, Exc) |
Excitation/output | 9 to 30 VDC / 0 to 5 VDC |
Output impedance | 100 ohms |
Bidirectional output at zero pressure | 2.5 VDC |
Electrical data (current) | |
Circuit | 2-wire |
Output | 4 to 20 mA |
External load | 0 to 800 ohms |
Min. loop supply voltage (VDC) | 9 + 0.02 x (resistance of receiver plus line) |
Max. loop supply voltage (VDC) | 30 + 0.004 x (resistance of receiver plus line) |
Bidirectional output at zero pressure | 12 mA |
Pressure media | Clean air or similar non-conducting gases. |
SETRA差压传感器264系列介绍
264 极低差压传感器采用无端不锈钢焊接电容式传感元件，只需极小的放大倍数，即可在关键安装中提供出色的精度和长期稳定性。264 采用坚固的设计，提供黄铜倒钩配件和可选导管盖，安装简单且一致。
• 极低差压的行业标准
• ±0.25%、±0.4%、±1% FS 精度
• 3 年无条件保修
• 高达 10 PSI 的过压（取决于范围）
• 最小化安装时间，使用安装选项
• 反向接线保护
• 内部调节允许与未调节的直流电源一起使用
• 阻燃外壳（经 UL 94 V-0 认证）
• 符合 CE 和 RoHS 标准
The 264 very low differential pressure transducer uses a dead-ended stainless steel welded capacitive sensing element that requires minimal amplification and delivers excellent accuracy and longterm stability in critical installations. The 264 utilizes a robust design that offers brass barbed fittings, and an optional conduit cover for easy and consistent installation.
• Industry standard for very low differential pressure
• ±0.25%, ±0.4%, ±1% FS accuracy
• 3 year unconditional warranty
• Up to 10 PSI overpressure (range dependent)
• Installation time minimized w/ mounting options
• Reverse wiring protection
• Internal regulation permits use with unregulated DC power supplies
• Fire retardant case (UL 94 V-0 approved)
• CE & RoHS compliant

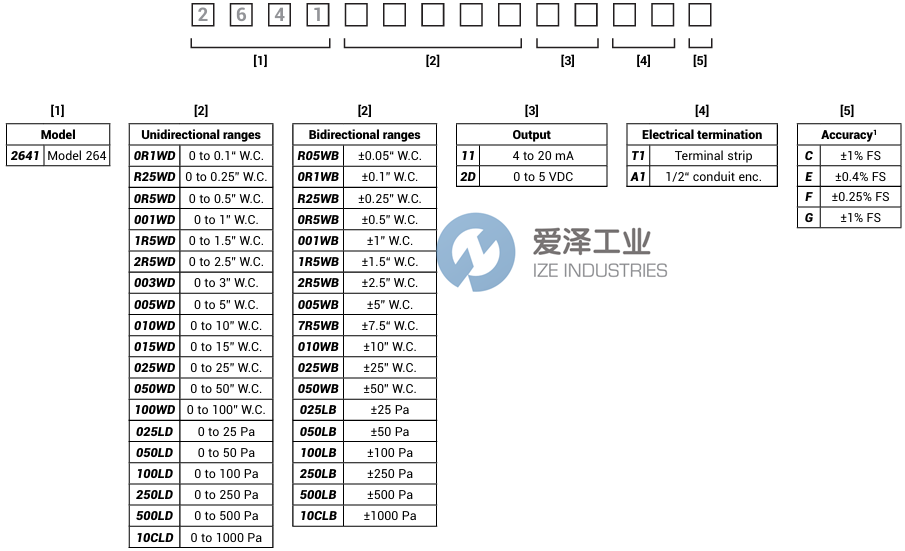

SETRA差压传感器264系列选型
SETRA差压传感器264系列其他常用型号：
SETRA 26410R5WB11T1F
SETRA 2641R25WB2DT1C
SETRA 2641005WB2DT1C
SETRA 2641003WD11T1C
SETRA 2641010WD2DT1C
SETRA 2641001WD2DT1C
SETRA 26410R1WB11T1C
SETRA 2641005WD2DT1G
SETRA 26410R1WB2DT1C
SETRA 2641005WD11T1E
SETRA 2641R25WB11T1G
SETRA 2641010WD11T1F
SETRA 26412R5WB2DT1G
SETRA 2641001WB11T1C
SETRA 2641001WD11T1E
SETRA DIFFERENTIAL PRESSURE TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SETRA差压传感器2641001WD2DT1C的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SETRA差压传感器2641001WD2DT1C products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SETRA差压传感器264系列2641001WD2DT1C技术参数及选型
