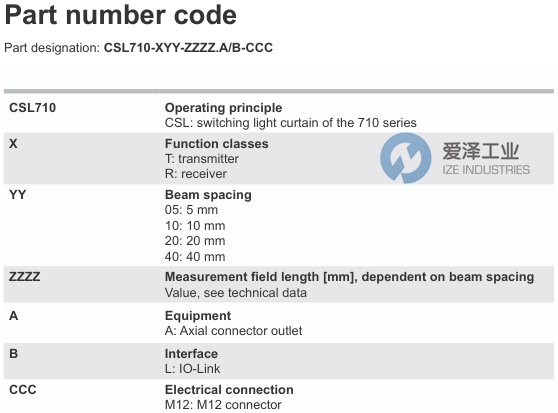

Operating principle

Throughbeam principle

Device type

Transmitter

Contains

2x BT-NC sliding block

Application

Precise object detection

Special version

Crossed-beam scanning
Diagonal-beam scanning
Parallel-beam scanning

Operating range

0.3 ... 7 m

Operating range

Guaranteed operating range

Operating range limit

0.2 ... 9 m

Operating range limit

Typical operating range

Measurement field length

320 mm

Number of beams

32 Piece(s)

Beam spacing

10 mm

Light source

LED, Infrared

Wavelength

940 nm

Transmitted-signal shape

Pulsed

Minimum object diameter

20 mm

Protective circuit

Polarity reversal protection
Short circuit protected
Transient protection

Supply voltage UB

18 ... 30 V, DC

Residual ripple

0 ... 15 %, From UB

Open-circuit current

0 ... 165 mA, The specified values refer to the entire package consisting of transmitter and receiver.

Design

Cubic

Dimension (W x H x L)

29 mm x 35.4 mm x 393 mm

Housing material

Metal

Metal housing

Aluminum

Lens cover material

Plastic / PMMA

Net weight

500 g

Housing color

Red

Type of fastening

Groove mounting
Via optional mounting device

Ambient temperature, operation

-30 ... 60 °C

Ambient temperature, storage

-40 ... 70 °C

Degree of protection

IP 65

Protection class

III

Certifications

c UL US

Standards applied

IEC 60947-5-2
