Supply voltage

12-30 VDC (5 VDC optional)

Signal amplitude

HTL or TTL
Sin/Cos

Number of pulses

Standard pulse rates for HTL/TTL: 500, 600, 1000, 1024, 1200, 1300, 2000, 2048, 2400, 2500
Special pulse rates for HTL/TTL: 4000, 4096, 4800, 5000, 8192, 10000, 12000, 16000, 16384, 20000, 25000, 40000, 50000 up to 1 million
Standard pulse rates for Sin/Cos: 500, 600, 1000, 1024, 1200, 1300, 2500

Output signals

0°, 90°, N, status and inverted signals

Switching outputs

Speed

Maximum Speed / Frequency

Solid shaft: up to 6000 rpm / 200 kHz
Hollow shaft: up to 4000 rpm / 200 kHz

Electrical connection

Terminal strip in a terminal box
Fixed cable
12-pole round connector Burndy
15-pole industrial connector
FOC connector in a terminal box

Type of construction

Solid shaft (B5, B35): Ø 11 mm, Ø 14 mm with feather key
Through hollow shaft: Ø 16 mm, Ø 19 mm, Ø 20 mm with keyway; Ø 16 mm, Ø 25 mm without keyway with clamp
Blind hollow shaft in inches: Ø 3/8“, Ø 1/2“, Ø 5/8“, Ø 3/4“, Ø 7/8“, Ø 1“ with clamping ring

Device temperature range

0 °C to +70 °C
-25 °C to +85 °C
-40 °C to +85 °C
-5 °C to +100 °C

Degree of protection

up to IP66 / IP67

Weight

approx. 3.5 kg

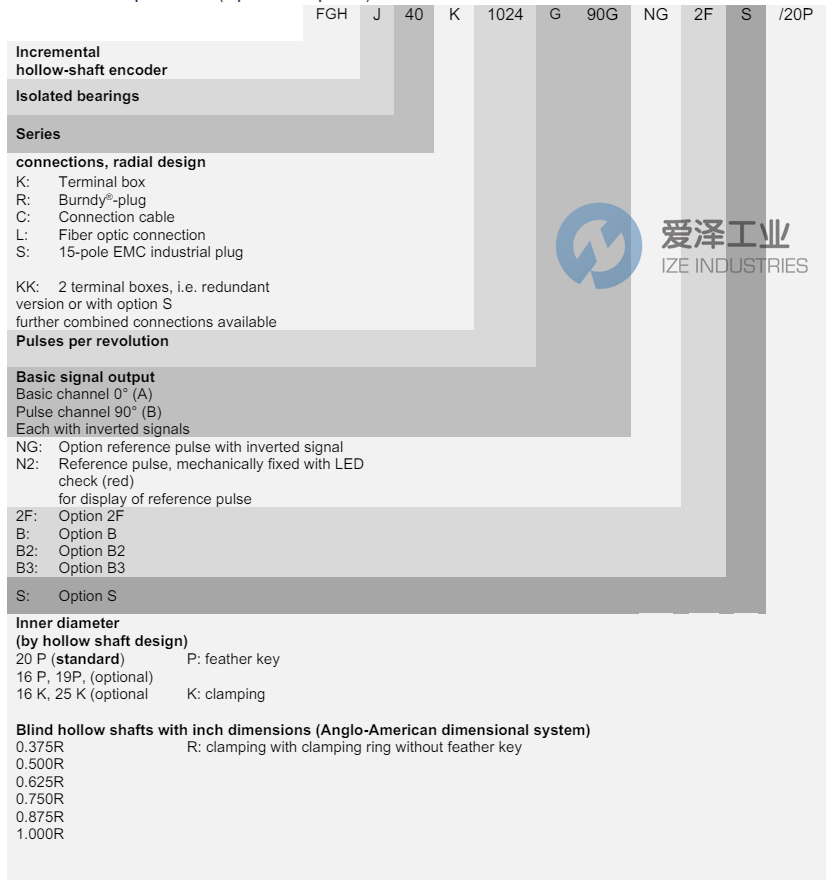

Device options / Function

Redundant incremental output
S: Electronic overspeed switch with two mutually independent, programmable switching points
LWL: Encoder signals transmitted via a fiber optic cable 50 / 125 μm or 62.5 / 125 μm
N: Mechanically fixed reference pulse (N), one square-wave pulse per revolution, with inverted signal
2F: Twice as many basic track pulses by combining the 0° and 90° tracks
B: Rapid direction of rotation sensing at each edge of 0° and 90° tracks
B2: Rapid direction of rotation sensing at each edge of 0° and 90° tracks; additional standstill detection
B3: Direction of rotation dependent output signals. This option supports counter cards with separate UP/DOWN pulse inputs. Basic track signals are issued at optional output 1 when rotation is clockwise and at optional output 2 when rotation is counterclockwise
SH: 1 Vpp signals sin, cos, reference pulse. Status as HTL signal; all signals each with respective inverted signals
ST: 1 Vpp signals sin, cos, reference pulse. Status as TTL signal; all signals each with respective inverted signals

Mechanical options

Second shaft end with B14 flange for attachments (solid shaft construction type only)
Additional foot (solid shaft construction type only)
Isolated ball bearing (hollow shaft construction type only)
MI: Saliferous environment
MS: Wet areas in rolling mills
Hollow shaft devices: Torque bracket (on request)

Certificates / Approvals

UL/CSA
