SETRA差压传感器201系列技术参数
SPECIFICATIONS | |
Performance Data | |
Accuracy RSS (at constant temperature) | ±0.5% FS |
Non-Linearity, (BFSL) | ±0.45% FS |
Hysteresis | 0.25% FS |
Non-Repeatability | 0.25% FS |
Environmental Data | |
Temperature | |
Operating °F(ºC) | -40 to +175 (-40 to +80) |
Storage °F(ºC) | -40 to +185 (-40 to +85) |
Acceleration | 10g maximum |
Shock | 50g Operating |
Electrical Data (Voltage) | |
Circuit | 2-Wire |
Output | 4 to 20 mA |
External Load | 0 to 800 Ohms |
Minimum Supply Voltage (VDC) | 12 + 0.02 x (Resistance of receiver plus line) |
Maximum Supply Voltage (VDC) | 30 + 0.004 x (Resistance of receiver plus line) |
Physical Description | |
Case | Stainless Steel |
Electrical Connection | 2ft. Multiconductor Cable (Std), 3 Screw Terminal Block |
Pressure Fitting | 1/4” NPT Internal |
Weight | 6 ounces |
SETRA差压传感器201系列介绍
Setra 201 型是一款精确、低成本的压力传感器，用于测量极低的表压差。 201 的全焊接无 O 形圈结构实现了无泄漏设计，是关键的低频应用不错的选择。 201 过程连接设计用于与不锈钢和 600 系列铬镍铁合金兼容的压力介质。
Setra的可变电容传感器设计结合了极致的简单性、高精度和热稳定性。它具有铬镍铁合金隔膜和绝缘电极。随着压力的增加或减少，电容会发生变化。检测电容的这种变化并将其转换为完全调节的线性电流输出信号。
其坚固的设计、45 PSI 高过压能力和宽工作温度使 201 型成为最苛刻应用的选择。
Setra’s Model 201 is an accurate, low cost pressure transducer for measuring very low differential of gauge pressure. The 201’s all-welded no o-ring construction results in a leak-free design, idea for the most critical low range applications. The 201 process connection is designed to be used with pressure media compatible with stainless steel and 600 Series Inconel.
Setra’s patented variable capacitance sensor design combines the ultimate in simplicity, with high accuracy and superior thermal stability. It features an Inconel diaphragm and an insulated electrode. As pressure increases or decreases, the capacitance changes. This change in capacitance is detected and converted to a fully conditioned linear current output signal.
Its rugged design, 45 PSI high overpressure capability, and wide operating temperature make the Model 201 ideal for the most demanding applications.

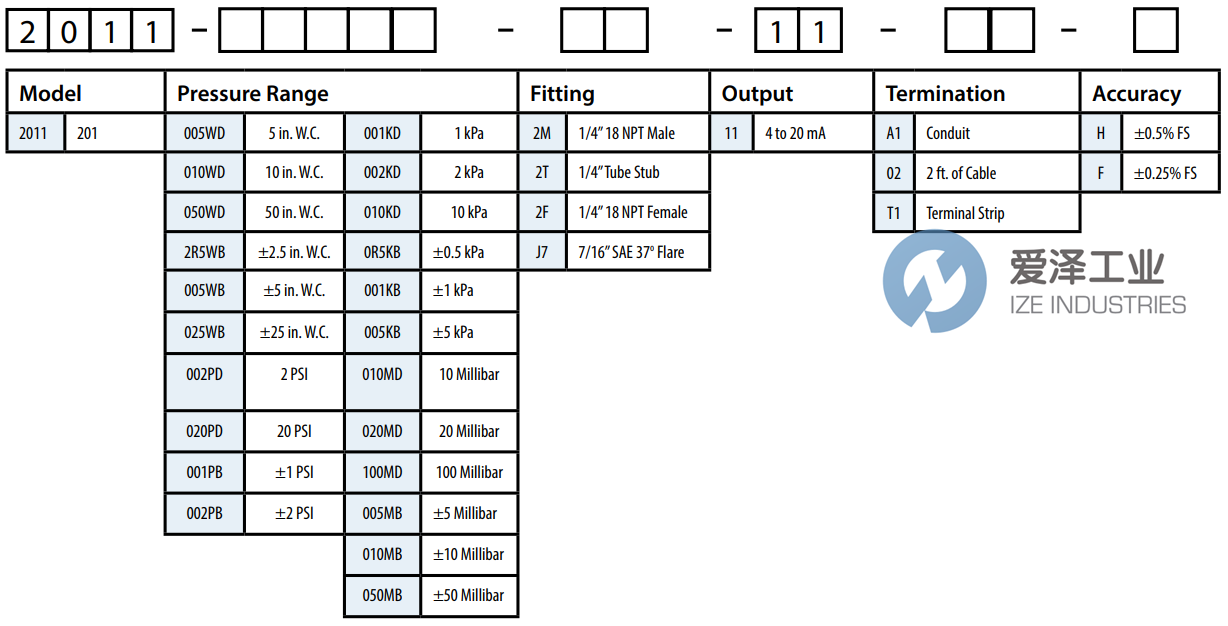

SETRA差压传感器201系列选型
SETRA差压传感器201系列其他常用型号：
SETRA 2011-005WB-2M-11-02-F
SETRA 2011-005KB-2M-11-02-F
SETRA 2011-005KB -2M-11-02-H
SETRA 2011003WB2M11A1H
SETRA 2011-002KD -2F-11-T1-F
SETRA 2011-002PD -J7-11-02-F
SETRA 2011-050MB -J7-11-T1-F
SETRA 2011-005MB -J7-11-T1-F
SETRA 2011-020MD -J7-11-T1-F
SETRA 2011-005KB -J7-11-T1-F
SETRA 2011-0R5KB -J7-11-T1-F
SETRA 2011-002KD -J7-11-T1-F
SETRA 2011-002PB -J7-11-T1-F
SETRA 2011-020PD -J7-11-T1-F
SETRA DIFFERENTIAL PRESSURE TRANSDUCER NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SETRA差压传感器2011-005KB-2M-11-02-F的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SETRA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SETRA差压传感器201系列2011-005KB-2M-11-02-F技术参数及选型
