ELECTRO-SENSORS轴速开关SCP2000技术参数
Specifications | |
Detection (selectable) | Under-speed, Over-speed, Zero Speed |
Operating | |
Input Power Options | 115 VAC (60 Hz), 230 VAC, 12 VDC, 24 VDC |
Maximum Frequency | 266.66 Hz |
Gap Distance | 1/4" ± 1/8" |
Operating Temperature | -40° F to +140° F |
Setpoint Data | |
Number of Setpoints | 2 |
Setpoint Range (RPM) | 10-999 |
Contact Arrangement | 2 SPDT Form C |
Setpoint Accuracy | ±0.5% |
Setpoint Adjustment | Rotary Switches (tens and ones digit) |
Hysteresis | 0.06 |
Relay Contact Rating | Isolated, 5 Amp, 250 VAC, 30 VDC Resistive |
Start Delay Option | Yes |
Housing | |
Enclosure Mount | 1-Inch NPT Conduit Opening |
Material | Cast Aluminum |
Enclosure Rating | NEMA 4X, Meets NEMA 1, 3, 12, 13, and NEMA 7, 9 |
ELECTRO-SENSORS轴速开关SCP系列介绍
SCP1000 和 SCP2000 可预设速度开关是独立的轴旋转监控系统，提供一两个可单独调节的继电器设定点。 它们非常适合在危险和潮湿的场所使用，在这些场所中，监控速度以进行报警或机械关闭对于安全操作至关重要，例如斗式提升机、风扇/鼓风机、螺旋输送机、旋转气闸或几乎任何旋转轴的超速和/或欠速保护。 SCP 系列开关具有通过旋转刻度盘进行视觉设定点调整的功能，方便且准确，并且所有校准都可以在机器静止时完成。
特征
• 内部传感器
• 超速或低速配置，1-990 rpm
• 1 个 DPDT 继电器输出 (SCP1000)、2 个 SPDT 继电器输出 (SCP2000)
• 具有数字精度的视觉设定点调整
• 内置启动延迟
• 拨入式校准不需要电源
• 115、230 VAC (50-60 Hz) 和 12、24 VDC 电源选项
• 与电传感器磁脉冲发生器圆盘/包裹一起使用
• 可选的EZ-SCP 安装支架和安装磁铁
• 铸铝防爆（XP）外壳
• UL 认证 Class I, Div I (C, D) Class II, Div I (E, F, G)
SCP1000 and SCP2000 presettable speed switches are self-contained shaft rotation monitoring systems providing one or two individually adjustable relay setpoints. They are ideal for use in hazardous and wet locations where monitoring speed for alarm or machinery shutdown is critical for safe operation, such as for over-speed and/or under-speed protection on bucket elevators, fans/blowers, screw conveyors, rotary airlocks or virtually any rotating shaft. SCP series switches feature visual setpoint adjustment via rotary dials for ease and accuracy, and all calibration can be done with the machinery at rest.
Features
• Internal sensor
• Over-speed or under-speed configuration, 1-990 rpm
• 1 DPDT relay output (SCP1000), 2 SPDT relay outputs (SCP2000)
• Visual setpoint adjustment with digital accuracy
• Built-in start delay
• Dial-in calibration does not require power
• 115, 230 VAC (50-60 Hz) and 12, 24 VDC power options
• Works with Electro-Sensors magnetic pulser discs / wraps
• Optional EZ-SCP mounting bracket and Mounting Magnet
• Cast aluminum explosion proof (XP) housing
• UL Listed Class I, Div I (C, D) Class II, Div I (E, F, G)

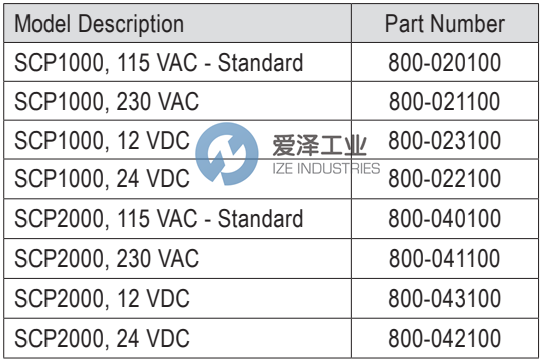

ELECTRO-SENSORS轴速开关SCP系列选型
ELECTRO-SENSORS轴速开关SCP系列其他常用型号：
ELECTRO-SENSORS SCP1000 115 VAC - Standard 800-020100
ELECTRO-SENSORS SCP1000 230 VAC 800-021100
ELECTRO-SENSORS SCP1000 12 VDC 800-023100
ELECTRO-SENSORS SCP1000 24 VDC 800-022100
ELECTRO-SENSORS SCP2000 115 VAC - Standard 800-040100
ELECTRO-SENSORS SCP2000 230 VAC 800-041100
ELECTRO-SENSORS SCP2000 12 VDC 800-043100
ELECTRO-SENSORS SCP2000 24 VDC 800-042100
