TRANDUCER TECHNIQUE称重传感器HSW-2K技术参数
Specifications |
| |
Rated Output (R.O.): | 2 mV/V nominal | |
Nonlinearity: | 0.1% of R.O. | |
Hysteresis: | 0.1% of R.O | |
Nonrepeatability: | 0.05% of R.O. | |
Zero Balance: | 1.0% of R.O. | |
Compensated Temp. Range: | 60° to 160°F | |
Safe Temp. Range: | -65° to 200°F | |
Temp. Effect on Output: | 0.005% of Load/°F | |
Temp. Effect on Zero: | 0.005% of R.O./°F | |
Terminal Resistance: | 350 ohms nominal | |
Excitation Voltage: | 10 VDC | |
Safe Overload: | 150% of R.O. | |
Calibration Included: | Compression | |
Optional Calibration: | Tension | |

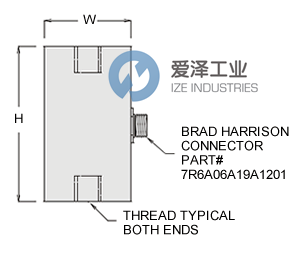

Dimensions in Inches | ||
Model | HSW-2K | |
Capacity lb | 2000 | |
H | 2.5 | |
W SQ. | 1.425 | |
Thread | 3/8-24 UNF | |
Thread Depth | 0.4 | |
Natural Ringing Frequency HZ | 5000 | |
Deflection | 0.003 | |
wt. lb | 1.9 |
TRANDUCER TECHNIQUE称重传感器HSW系列介绍
HSW 系列称重传感器采用密封设计，可在恶劣的工业环境中使用。所有系列均由 17-4 ph 热处理不锈钢制成，并采用不锈钢模制连接器系统，旨在抵抗冲洗和大多数化学品。配套连接器单独出售，提供三种不同的电缆长度。与 SW0 系列一样，HSW 系列提供高精度、低偏转、快速频率响应以及拉伸和压缩之间良好的输出（毫伏）顺应性。
The HSW Series load cell is hermetically sealed for use in harsh industrial environments. All ranges are made from 17-4 ph heat treated stainless steel and incorporate a stainless steel molded connector system designed to resist wash down and most chemicals. The mating connector, sold separately, is available in three different cable lengths. As with our SW0 Series, the HSW Series offers high accuracy, low deflection, fast frequency response, and a good output (millivolt) compliance between tension and compression.
TRANDUCER TECHNIQUE称重传感器HSW系列其他常用型号：
TRANDUCER TECHNIQUE HSW-500
TRANDUCER TECHNIQUE HSW-1K
TRANDUCER TECHNIQUE HSW-2K
TRANDUCER TECHNIQUE HSW-3K
TRANDUCER TECHNIQUE HSW-5K
TRANDUCER TECHNIQUE HSW-10K
TRANDUCER TECHNIQUE HSW-20K
TRANDUCER TECHNIQUE HSW-30K
TRANDUCER TECHNIQUE HSW-50K
