TENSOMETRIC传感器M-1355-NH2技术参数
Nominal loads: | 300 N, 500 N, 600N or 1000N -- others upon request |
Measuring principle: | strain-gage, full-bridge |
Measuring range: | 1 % up to 115% the nom.load |
Coef. of temperature: | - of the zero < 0,035 % / °C |
Max. Error in line. | < ± 0, 2 % |
Overload protection: | 5- times up to 10- times depends on the nom.load |
Service voltage: | 5 V ± 10% < 100 mA |
Outputsignal: | 0 ... ± 10V |
Output current: | max. 2 mA |
option: Output current | 4 - 20mA |
Protection: | IP 50 |
Charact.of temperature: | + 5°C ... + 55°C |
Adjusting range zero: | ± 20% of the nom.load |
Adjusting range calibration | ± 20% of the nom.load |
Adjusting the zero | by means of a screw-driver |
Adjusting the gain | by means of a screw driver |
Connection cable: | length 5 m, fix connected |
TENSOMETRIC传感器M-1355-NH系列介绍
M 1355 NH 系列径向力传感器是精确可靠的测量系统，具有高过载保护和高长期稳定性。
为了测量运行材料上的拉力，在轴颈轴承上安装一个装有滚珠轴承的滚子。
该测量辊必须安装在一个位置，即要测量的材料将以定义的角度偏离。
在这里，被测量材料的接触角 - 围绕测量辊，在 3° 和 180° 之间是可能的。 由于偏差而产生的 ces 由传感器测量。
在被测材料中，径向力与张力成正比。 对应于该径向力，选择传感器的标称负载。
Radial - Force - Sensors of series M 1355 NH are precise and reliable measuring systems, as well high overload-protected as high in long-time-stability.
For measuring tensile forces on running material, fit a ball-bearing-mounted roller on the journal-bearing.
This measuring roller has to be mounted in a position, that the material which will be measured, will deviate in a defined angle.
Here angle of contacts, of the material which is measured - around the measuring-roller, between 3° and 180° are possible. The resulting for ces, due to the deviation, are measured by the sensor.
The radial force is proportional to the tensile force, in the material which is measured. Corresponding to this radial-force the nominal load of the sensor is to select.

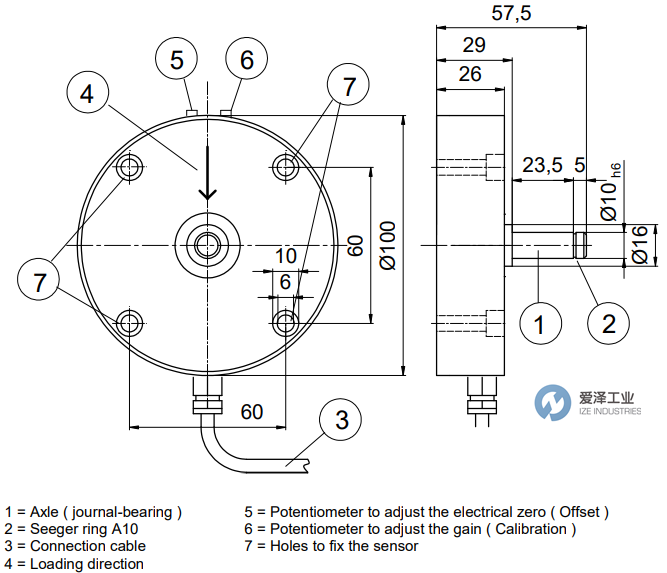

TENSOMETRIC传感器M-1355-NH系列技术尺寸
TENSOMETRIC传感器M-1355-NH系列其他常用型号：
TENSOMETRIC M-1355-NH1
TENSOMETRIC M-1355-NH
TENSOMETRIC M-1355-NH2
