FOXBORO电导率传感器871FT-3H4B3T技术参数
Code | 871FT-3H4B3T |
Momel | 871FT = Industrial Flow-Through Conductivity Sensor |
Sensor Type | -3 = Industrial,High-Range Conductivity |
Nominal Line Size | H = 3 in (c) |
End Connection Material | 4 = Carpenter 20-CB3 (C-20Cb3) (e) (f) |
Insulator (Wetted Bore Piece) Material | B = PolyVinylideneDiFluoride (PVDF) (b) |
End Connection Form (h) | 3 = Flange, ANSI Class 150 |
RTD | T = 100 Ohm RTD |
FOXBORO电导率传感器871FT系列介绍
871FT 系列非侵入式卫生和工业流通传感器是一系列在线传感器,可测量几乎任何导电液体的电导率。 它们提供 0.5 至 4.0 英寸的多种常见管线尺寸。 还提供一系列适合各种卫生和工业应用的材料。
The 871FT Series Non-Invasive Sanitary and Industrial Flow-Through Sensors are a family of in-line sensors that measure the conductivity of virtually any conductive liquid. They are offered in many common line sizes from 0.5 to 4.0 inches. A selection of construction materials to accommodate a wide range of sanitary and industrial applications is also offered.

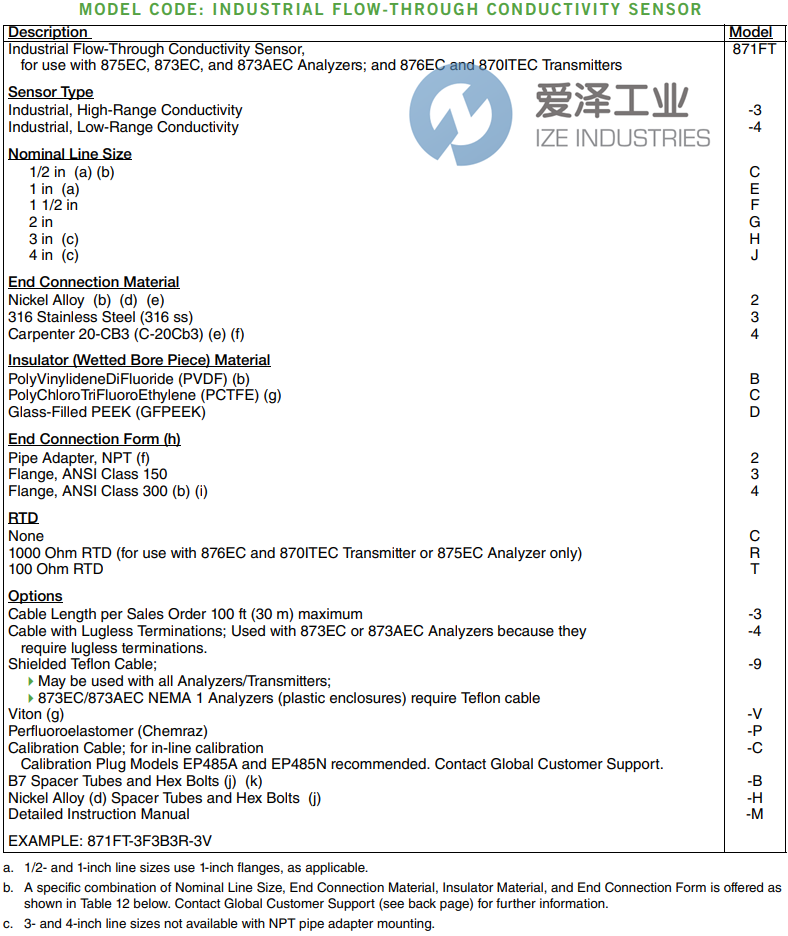

FOXBORO电导率传感器871FT系列选型
FOXBORO电导率传感器871FT系列其他常用型号:
FOXBORO 871FT-3H4B3T
FOXBORO 871FT-3J3D3C-C
FOXBORO 871FT-4C3D2T
FOXBORO 871FT-1G1A1T-C
FOXBORO 871FT-4E3D3T-C
FOXBORO 871FT-2F1A1C-3C
FOXBORO 871FT-161A1T-C
FOXBORO 871FT-4E2B3T-9
FOXBORO 871FT-3H4B3T-9V
FOXBORO CONDUCTIVITY SENSORS NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于FOXBORO电导率传感器871FT-3H4B3T的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for FOXBORO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
FOXBORO电导率传感器871FT系列871FT-3H4B3T技术参数及选型
