PYROPRESS温度开关TF171S1B/075M2/PG1XB技术参数
TF171S1B/075M2/PG1XB |
1 = WITH THERMOWELL |
S = ST. STEEL CASE |
1 = 1 x SPDT SWITCH |
B = ATEX/IECEx Exd CERTIFIED |
075 = THERMOWELL “U” DIMENSIONS: 75 mm |
M2 = TEMPERATURE ELEMENT: M2 |
P = WITH THERMOWELL |
G = 1” NPT |
1 = THERMOWELL/STEM: 316 STAINLESS STEEL |
X = BLANKING PLATE STD. |
B = ELECTRICAL ENTRY: M20 ANGLED |
PYROPRESS温度开关TF17系列介绍
标准系列代表基本型号,涵盖 -10 至 +250o C 的温度应用。TF171 配有螺纹热电偶套管,TF172 没有热电偶套管,但配有螺纹杆。
热套管和阀杆材料:316 不锈钢。 工作压力 MAX.:35 Bar - 标准,420 Bar - 高压。 热电偶套管可提供法兰式或螺纹式以满足应用需求。 可以满足所有稀有金属的需求。 可以提供材料证书和尾流频率分析计算。
The standard range represents the basic models to cover temperature applications from -10 to +250o C. TF171 is supplied fitted with a threaded thermowell, TF172 has no thermowell but is supplied with a threaded stem.
Thermowell and stem material : 316 stainless steel. Max working pressure : 35 Bar - standard, 420 Bar - high pressure. Thermowells can be provided flanged or threaded to suit the application. All exotic metals can be catered for. Material certificates and wake frequency analysis calculations can be provided.

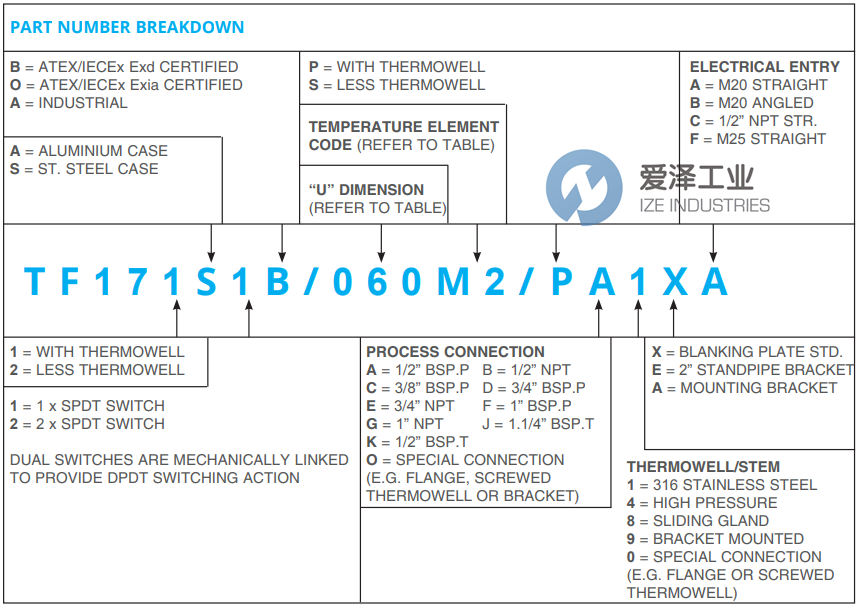

PYROPRESS温度开关TF17系列选型
PYROPRESS温度开关TF17系列其他常用型号:
PYROPRESS TF171S1B/060M2/PA1XA
PYROPRESS TF171S1B/075M2/PG1XB
TEMPERATURE SWITCH NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于PYROPRESS温度开关TF171S1B/075M2/PG1XB的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for PYROPRESS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
PYROPRESS温度开关TF17系列TF171S1B/075M2/PG1XB技术参数及选型
