SMART GAS传感器F1系列技术参数
General features | |
Measurement principle: | Non Dispersive Infra-Red (NDIR), dual wavelength |
Measurement range: | dependent on model – see list |
Gas supply: | by perfusion |
Dimensions: | Length (model dependent) x 28 mm x 42 mm (L x W x H) |
Gas line connectors: | 3 mm internal, 5mm outer diameter |
Technical features @ 25°C, 1013 mbar gas pressure, 0.5 l/min constant gas flow | |
Response time (t90): | Appr. 15 s (at 0.5 l/min) |
Resolution: | 1 ppm to 0.01 Vol.% FS |
Accuracy: | ≤ ±2 % FS |
Long term stability (zero): | ≤ ±2 % FS 1 over 12 month period |
Long term stability (span): | ≤ ±2 % FS over 12 month period |
Repeatability: | ≤ ±2 % FS |
Linearity error: | ≤ ±1 % FS |
Lower detection limit: ≤ 1 % FS (typically) | |
Operating temperature: | -10 °C to 40 °C |
Storage temperature: | -20 °C to 60 °C |
Humidity: | 0 % to 95 % rel. humidity (not condensing) |
Temp. dependence (zero): | ≤ ±0.01 % FS per °C |
Temp. dependence (span): | ≤ ±0.2 % FS per °C |
Air pressure: | 950 to 1050 mbar |
Pressure dependence (span): | 0.1 % to 0.2 % per mbar |
Warm-up time: | < 2 minutes (start up time) |
Flow rate: | 0.2 - 1.5 l/min |
Communication | |
Digital output signal: | Modbus ASCII via UART |
Electrical data | |
Supply voltage: | 6 V DC ± 5 % |
Supply current: | 70 mA average, max. 140 mA |
Power consumption: | < 1 Watt |
SMART GAS传感器F1系列介绍
红外气体传感器采用双光束技术，具有测量和参考通道，适用于分析设备和过程控制应用。 用于漂移和温度补偿的集成评估电子器件。 坚固的铝制比色皿，带有气体管线连接器。
• 红外测量原理（NDIR）
• 双光束技术
• 通过 UART 的 Modbus ASCII
• 坚固的铝比色皿
• 3/5mm 燃气管线连接器
• 温度补偿
• 高选择性
• 可提供客户特定模块
Infrared gas sensor using dual beam technology with measurement and reference channel for use in analytical devices and process control applications. Integrated evaluation electronics for drift and temperature compensation. Robust aluminium cuvette with gas line connectors.
• Infrared measuring principle (NDIR)
• Dual beam technology
• Modbus ASCII via UART
• Robust aluminium cuvette
• 3/5mm gas line connectors
• Temperature compensation
• High selectivity
• Customer-specific modules possible

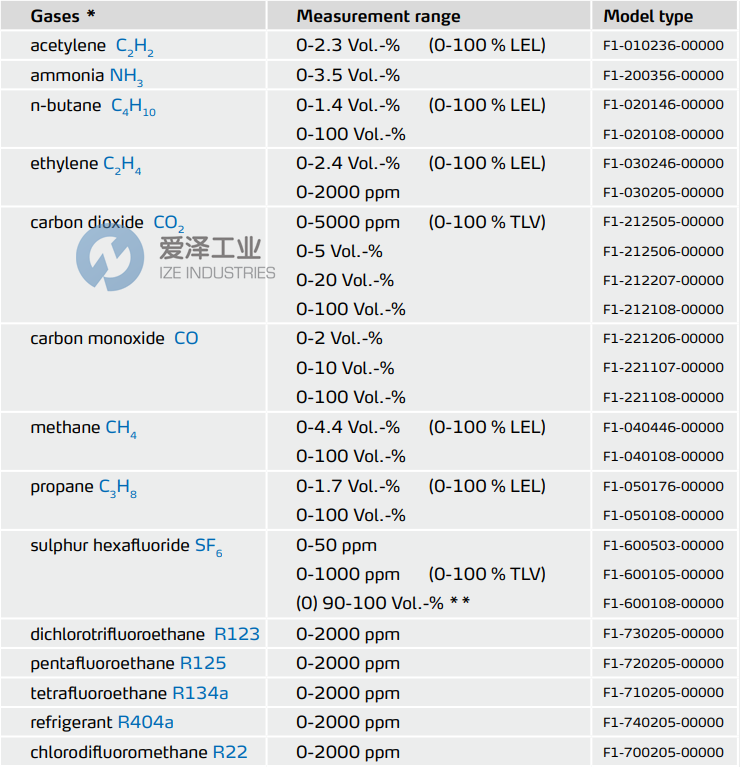

SMART GAS传感器F1系列选型
SMART GAS传感器F1系列其他常用型号：
SMART GAS F1-010236-00000
SMART GAS F1-200356-00000
SMART GAS F1-020146-00000
SMART GAS F1-020108-00000
SMART GAS F1-030246-00000
SMART GAS F1-030205-00000
SMART GAS F1-212505-00000
SMART GAS F1-212506-00000
SMART GAS F1-212207-00000
SMART GAS F1-212108-00000
SMART GAS F1-221206-00000
SMART GAS F1-221107-00000
SMART GAS F1-221108-00000
SMART GAS F1-040446-00000
SMART GAS F1-040108-00000
SMART GAS F1-050176-00000
