SEW变频器MCLTEB0040-5A3-4-00技术参数
Product type | MC LTE |
Version | B |
Recommended motor power | 0040 = 4.0 kW |
Line voltage | 5 = 380 – 480 V |
Interference suppression on the line side | A = Class A |
Connection type | 3 = 3-phase |
Quadrants | 4 = 4Q |
Type | 00 = Standard IP20 housing |
SEW变频器Movitrac LTE-B系列介绍
MOVITRAC LTE B提供的功能范围特别适合简单应用。 其人性化的设计使集成变得容易快捷。 同时，它当然也满足SEW-EURODRIVE的高质量要求。
MOVITRAC LTE B提供三种尺寸，功率范围从0.5到15.0 HP，供电电压为115 V，230 V和400V。
除了安装在控制柜中的IP20防护等级标准版本外，还有IP55 / NEMA 12和IP66 / NEMA 4X防护等级版本，可在特定的环境条件下使用。 这样，这些变频器即使暴露在灰尘或水中也能可靠，灵活地完成其工作。
The range of functions provided by MOVITRAC LTE B is particularly well adapted to simple applications. Its user-friendly design makes integration quick and easy. At the same time, it also meets the high quality requirements of SEW-EURODRIVE as a matter of course.
The MOVITRAC LTE B is available in three sizes for power ranges from 0.5 to 15.0 HP and supply voltages of 115 V, 230 V and 400 V.
In addition to the standard version in degree of protection IP20 for installation in the control cabinet, there is also a version in degree of protection IP55 / NEMA 12 and IP66 / NEMA 4X, to be used under specific environmental conditions. In this way, these frequency inverters can do their job reliably and flexibly even when exposed to dust or water.

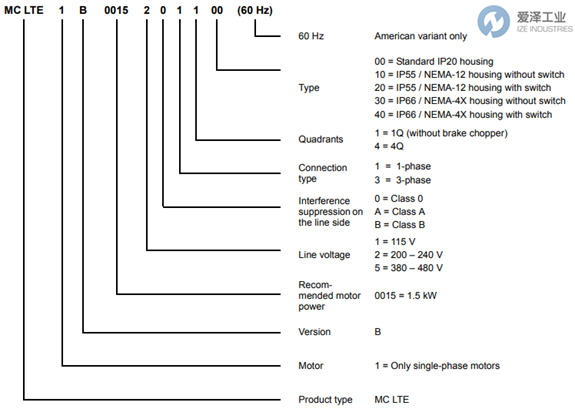

SEW变频器Movitrac LTE-B系列选型
SEW变频器Movitrac LTE-B系列其他常用型号：
SEW MCLTE-B0008-5A3-1-40
SEW MCLTE-B0008-5A3-1-30
SEW MCLTE-B0008-5A3-1-20
SEW MCLTE-B0008-5A3-1-10
SEW MCLTE-B0008-5A3-1-00
SEW MCLTE-B0015-5A3-1-00
SEW MCLTE-B0015-5A3-1-10
SEW MCLTE-B0015-5A3-4-20
SEW MCLTE-B0022-5A3-4-30
SEW MCLTE-B0040-5A3-4-40
SEW MCLTEB0040-5A3-4-00
