SEW变频器MDX61B0110-5A3-4-00技术参数

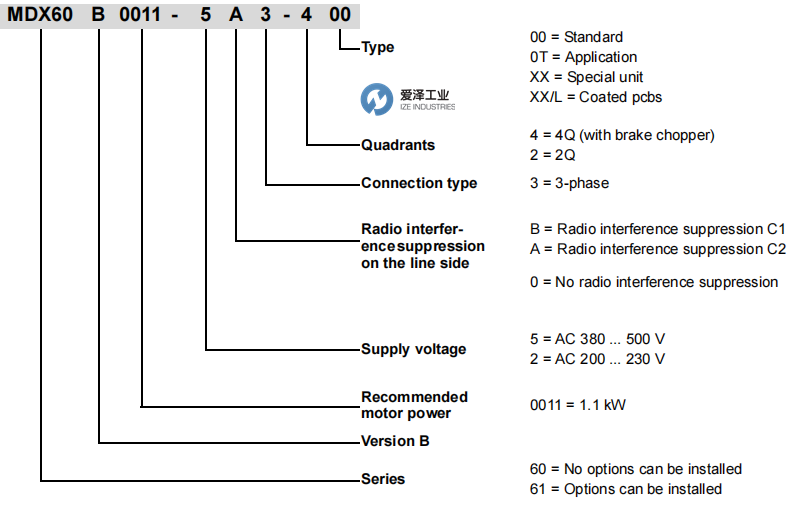

Unit designation | MDX61B0110-5A3-4-00 |
Series | 61 = Options can be installed |
Version | B |
Recommended motor power | 0110 =11.0 kW |
Supply voltage | 5 = AC 380 ... 500 V |
Radio interfer-ence suppression on the line side | A = Radio interference suppression C2 |
Connection type | 3 = 3-phase |
Quadrants | 4 = 4Q (with brake chopper) |
Type | 00 = Standard |
SEW变频器MOVIDRIVE MDX60B/61B系列介绍
MOVIDRIVE驱动逆变器的紧凑设计节省了控制柜的空间，其高用户友好性保证了参数化期间的时间，而智能IPOSplus定位和序列控制作为标准。
在驱动逆变器中的大量输入和输出确保了一个合格的基本功能。可选的通信和技术模块提供了快速和方便的扩展。
The compact design of the MOVIDRIVE drive inverter saves space in the control cabinet, while its high user-friendliness ensures that you save time during parametrization, while the intelligent IPOSplus positioning and sequence control is included as standard.
A multitude of inputs and outputs in the drive inverter ensure a competent basic functionality. Optional communication and technology modules provide for quick and easy extension.
SEW变频器MOVIDRIVE MDX60B/61B系列介绍
具有选件功能的 MOVIDRIVE⑧MDX61B 单元可配备 DER11B 型旋转变压器卡。 旋转变压器卡为旋转变压器提供一个输入作为电机编码器，一个输入用于外部编码器，也称为距离编码器。 外部编码器的输入也可以用作增量编码器模拟的输出。
Option-capable MOVIDRIVE⑧MDX61B units can be equipped with resolver card type DER11B. The resolver card offers one input for the resolver as motor encoder and one input for an external encoder, also referred to as distance encoder. The input for the ex- ternal encoder can also be used as an output for incremental encoder simulation.
SEW变频器MOVIDRIVE MDX60B/61B产品参数
SEW变频器MOVIDRIVE MDX60B/61B系列其他常用型号：
SEW MDX61B-0011-5A3-4-0T
SEW MDX61B0110-5A3-4-00
SEW MDX61B-0150-5A3-4-0T
SEW MDX61B-0220-5A3-4-0T
SEW MDX61B-0300-5A3-4-0T
SEW MDX61B-0370-5A3-4-0T
SEW MDX61B-0450-5A3-4-0T
SEW MDX61B-0550-5A3-4-0T
SEW MDX61B-0750-5A3-4-0T
SEW MDX61B-0900-5A3-4-0T
SEW MDX61B-1100-503-4-00
SEW MDX61B-1320-503-4-00
SEW Drive Inverter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SEW变频器MDX61B0110-5A3-4-00的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for SEW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SEW变频器MDX61B0110-5A3-4-00技术参数
