LECTRONICON电容E62.S23-563M30技术参数
Part no. | E62.S23-563M30 |
|
Capacitance | 3 x 55.7 | |
Voltage (rms) | 850V | |
Voltage (AC) | 1200 Vac | |
Imax | 3 x 80 A | |

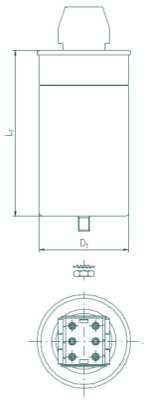

Can Height (L1) | 230mm | |
Can Diameter (D1) | 136mm | |
Filling | castor oil | |
Safety Device | BAM | |
Self-inductance | 125 nH |
ELECTRONICON电容E62系列介绍
"E62"AC/DC通用系列的圆柱形电容，适合非正弦波形电压和脉冲电流。例如作为阻尼或换向电容器与晶闸管并联切换，或与电阻串联连接（在功率半导体切换期间抑制不希望的电压尖峰）。它们可广泛用作支撑、平滑和浪涌放电电容器，也可用于滤波器等。MKP电介质的低损耗在很大程度上补偿了非正弦波形电压引起的损耗。
E62系列电容封装在铝外壳中，内部填充环保植物油。也可填充惰性气体。充气电容不仅环保，而且可以任意角度安装。而充油电容则由于电气和环保技术原因，应始终垂直安装。
金属化薄膜出色的自愈特性和自主压力保护装置(“BAM”)，确保电容器安全运行、以及在过载或使用寿命结束发生故障时受控地断开。
The cylindrical capacitors of our universal AC/DC series "E62" are perfect for non-sinusoidal voltages and pulsed currents, e.g. as damping or commutation capacitors switched in parallel to a thyristor, or connected in series with a resistor (damping of undesirable voltage spikes during the switching of power semiconductors). They can be widely used as supporting, smoothing, and surge discharge capacitors, further in AC filters, a.m.o. The low loss factor of our MKP dielectric compensates to a large extent for the losses caused by the non-sinusoidal voltages.
It goes without saying that all AC capacitors may as well be used for DC applications.
The E62s are housed in a hermetically sealed aluminium can which is filled with environmentally friendly plant oil as standard; optionally many of them can also be made available with a filling of inert gas. The gas filling is not only environmentally friendly, but also permits mounting in any position, while the oil-filled capacitors should - for electrical as well as environmental considerations - always be mounted vertically.
The excellent self-healing characteristics of our film metallization and the integrated overpressure protection (" BAM ") ensure safe operation and controlled disconnection in the event of overload or failure at the end of operating life.
ELECTRONICON电容E62系列其他常用型号：
ELECTRONICON E62.C58-101E40
ELECTRONICON E62.C58-151E40
ELECTRONICON E62.C58-221E40
ELECTRONICON E62.F62-221B20
ELECTRONICON E62.F62-471B21
ELECTRONICON E62.G62-681B20
ELECTRONICON E62.F10-102B21
ELECTRONICON E62.H10-152B20
ELECTRONICON E62.F10-202B20
ELECTRONICON E62.G10-202B20
ELECTRONICON E62.K85-473D1C
ELECTRONICON E62.C58-201E40
ELECTRONICON E62.S23-563M30
