SUBCONN水密连接器Micro Circular系列技术参数
Connector specifications | |
Voltage rating | 300 V DC/AC rms |
2, 3 and 4 contacts current rating | 10 A per contact (max 20 A per connector) |
5, 6 and 8 contacts current rating | 5 A per contact (max 20 A per connector) |
G2 2, 3 and 4 contacts current rating | 5 A per contact (max 20 A per connector) |
Insulation resistance | > 200 Mohm |
Contact resistance | < 0.01 ohm |
Wet matings | > 500 |
Temperature rating (water) | - 4 to 60˚C, 25 to 140˚F |
Temperature rating (air) | - 40 to 60˚C, - 40 to 140˚F |
Storage temperature rating | - 40 to 60˚C, - 40 to 140˚F |
Qualified pressure tested | 800 bar, 11,600 psi |
Depth rating PEEK | 300 bar, 4,350 psi |

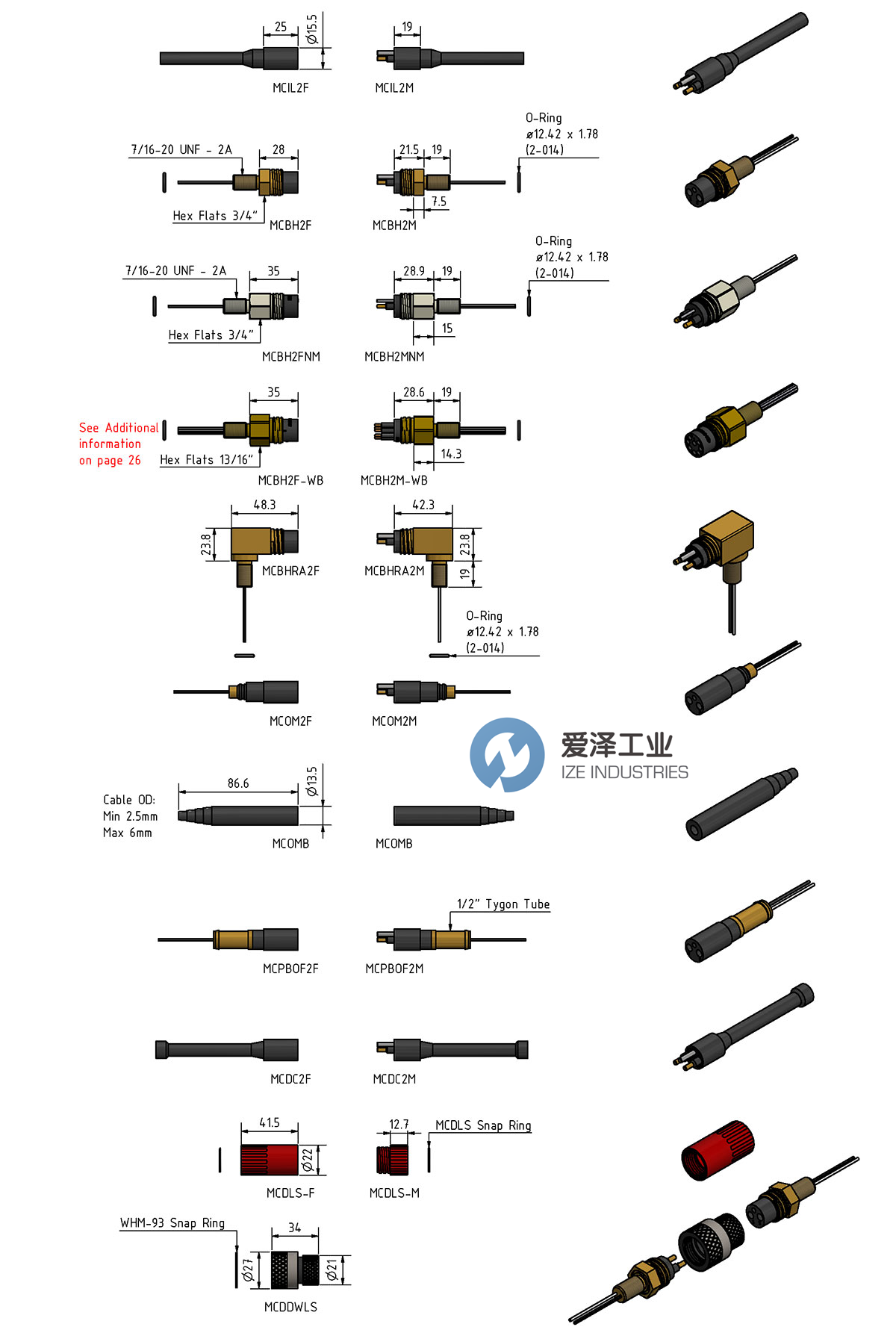

SUBCONN水密连接器Micro Circular系列介绍
SubConn微型圆形系列具有增强的密封能力，并采用了统一的触点尺寸和设计。 SubConn微型圆形连接器基于原始的SubConn圆形系列而开发，以适应水下仪器，设备和系统日益紧凑的设计。
SubConn微型圆形连接器在标准串联版本和隔板版本中提供2至21个触点，额定电流为300 V，5至10A。
SubConn微型圆形连接器由高级氯丁橡胶和多种车身材料制成，并具有很高的海洋深度等级。 SubConn微型圆形连接器具有增强的密封能力，并采用统一的触点尺寸和设计。
The SubConn Micro Circular series has enhanced sealing capability and utilise a uniform contact size and design. Based on the original SubConn Circular series, SubConn Micro Circular connectors were developed to suit the increasingly more compact design of underwater instruments, equipment and systems.
The SubConn Micro Circular connectors are available with 2 to 21 contacts rated at 300 V from 5 to 10 A in the standard inline version and in bulkhead versions.
The SubConn Micro Circular connectors are manufactured from high-grade neoprene and a variety of body material options and feature a high ocean depth rating. The SubConn Micro Circular connectors have enhanced sealing capability and utilise a uniform contact size and design.
SUBCONN水密连接器Micro Circular系列其他常用型号：
SUBCONN MCBH6F
SUBCONN MCBH12F
SUBCONN MCBH21F
