Nominal voltage

24 VAC/DC, 50/60 Hz

Nominal voltage range

19...29 VAC/DC

Power consumption   motor (motion)

3,5 W

Power consumption   standby (end position)

1,0 W

Wire sizing

5,5 VA

Control

continuous control   (0)2...10 VDC / Ri > (100 kΩ) 50 kΩ (0)4...20 mA / Rext. = 500 Ω

Feedback signal

(0)2...10 VDC, max. 5   mA

Connection motor

cable 1000 mm, 4 x   0,75 mm² (halogen free)

Functional data

Torque

5 Nm

Damper size

up to approx. 1 m²

Synchronised speed

±5%

Direction of rotation

selected by switch

Manual override

gearing latch   disengaged with pushbutton, self resetting

Angle of rotation

0°...max. 95° can be   limited with adjustable mechanical end stops

Running time

20 s / 90°

Sound power level

< 45 dB(A)

Shaft coupling

clamp ◊ 8-15 mm / Ø   8-20 mm

Position indication

mechanical with   pointer

Service life

> 100 000 cycles   (0°...95°...0°)
  > 1 500 000 partial cycles (max. ±5°)

Safety

Protection class

III (safety extra-low   voltage)

Degree of protection

IP 54 (cable   downwards)

EMC

CE (2014/30/EU)

LVD

CE (2014/35/EU)

RoHS

CE (2011/65/EU - 2015/863/EU   - 2017/2102/EU)

Mode of operation

Typ 1 (EN 60730-1)

Rated impulse voltage

0,8 kV (EN 60730-1)

Control pollution   degree

3 (EN 60730-1)

Ambient temperature   normal operation

-30°C...+50°C

Storage temperature

-30°C...+80°C

Ambient humidity

5...95% r.H., non   condensing (EN 60730-1)

Maintenance

maintenance free

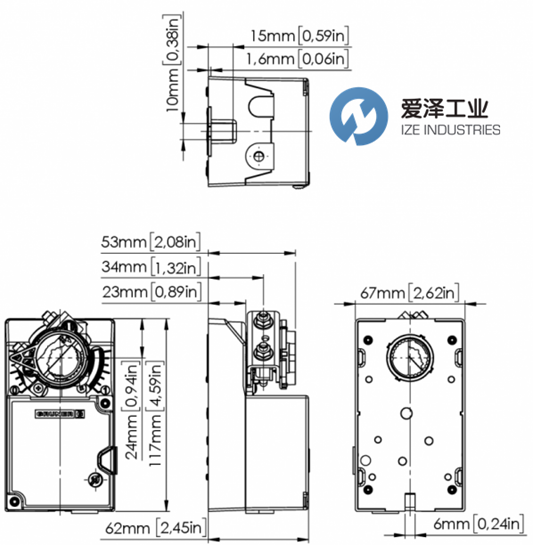

Dimensions / Weight

Dimensions

117 x 67 x 62 mm

Weight

350 g
