SCHNEIDER执行器MD5A-24技术参数
Specifications | |
Part number | 875-1009-000 |
Power supply | 24 V AC ±20%, 50–60 Hz, |
Power consumption | |
In operation | 1 W @ nominal torque |
At rest | 0.4 W |
For transforming sizing | 2 VA |
Connection cable | 1 m (3.3 ft), 4×0.75 mm2 (AWG 18) |
Control signal X | 0…10 Vdc |
Input resistance | 100 k Ohm |
Operating range | 2…10 Vdc (for set angle of rotation) |
Synchronisation tolerance | ±5% |
Position feedback Y | 2…10 Vdc (max. 1 mA) |
Angle of rotation | max. 95° (adjustable by mechanical stops) |
Torque | min. 5 Nm (45 in-lb) @ nominal voltage |
Sound power level | max. 35 dB (A) |
Maintenance | Maintenance-free |
Weight | Approx 0.5 kg (1.3 lb.) |
SCHNEIDER执行器MD5A-24产品介绍
• 致动器通过标准控制信号2...10Vdc进行控制。它打开到由这个信号决定的位置。测量电压Y让阻尼器位置（0...100%）通过电指示，并作为其他执行器的后续控制信号。
• 简单的直接用通用主轴钳安装在阻尼器主轴，提供一个防旋转带，以防止执行器旋转。
• 可通过自动复位按钮进行手动操作（只要按下或保留按钮，传动装置锁扣就会保持脱离）。
• 可调节机械端停止的旋转角度。
• 功能可靠性高：执行机构防过载，不需要限位开关，达到终端时自动停止。
• The actuator is controlled by means of a standard control signal 2…10 Vdc. It opens to the position dictated by this signal. The measuring voltage Y allows the damper position (0 ... 100%) to be electrically indicated and serves as a follow-up control signal for other actuators.
• Simple direct mounting on the damper spindle with a universal spindle clamp, supplied with an anti-rotation strap to prevent the actuator from rotating.
• Manual operation is possible with the self-resetting pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).
• Adjustable angle of rotation with mechanical end stops.
• High functional reliability: The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

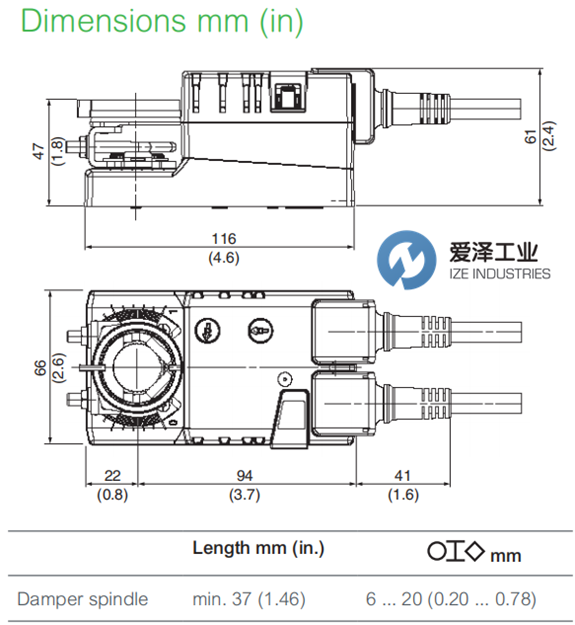

SCHNEIDER执行器MD5A-24技术尺寸
SCHNEIDER执行器MD系列其他常用型号：
SCHNEIDER MD40A-24
SCHNEIDER MD20A-24
SCHNEIDER MD10A-24
SCHNEIDER MD5A-24
SCHNEIDER Actuator NEW + ORIGINAL+ ONE YEAR WARRANTY
