SAMSON定位器3730-1系列技术参数
Travel Adjustable | Direct attachment to Type 3277 Actuator 3.6 to 30 mm |
Travel range | Travel range |
Set point w | Signal range 4 to 20 mA · Two-wire device, reverse polarity protection |
Static destruction limit 100 mA | 3.7 mA |
Load impedance | ≤6 V (corresponding to 300 Ω at 20 mA) |
Hysteresis | ≤1 % |
Sensitivity | ≤0.1 % |
Transit time | <0.5 s for initialization not permissible · Adaptation over volume restriction Q |
Direction of action | Reversible |
Air consumption | Independent from supply pressure approx. 110 ln/h |
Permissible ambient temperature | –20 to 80 °C in all versions |
Influences | Temperature ≤0.15 %/10 K |
Degree of protection | IP 66/NEMA 4X |
Weight | 1.0 kg · Special version in stainless steel: 2.2 kg |
SAMSON定位器3730-1系列介绍
电动气动定位器
压铸铝或不锈钢外壳
根据 IEC 60534-6、VDI/VDE 3847 或 SAMSON 整体附件连接到线性执行器
根据 VDI/VDE 3845 连接到旋转执行器
使用 3710 型换向放大器连接到双作用执行器
任何可能的定位器安装位置
简单的一键式菜单驱动操作
由于可旋转的阅读方向,在任何安装位置都易于阅读
变量自动启动
预设参数,只有偏离标准的值需要调整
校准的行程传感器,没有易磨损的齿轮
所有参数保存在非易失性 EEPROM 中
具有 300 Ω 小电气负载的两线制系统
可启动紧闭功能
自动零位监控
两个标准可编程位置警报
Electropneumatic positioner
Die-cast aluminum or stainless steel housing
Attachment to linear actuators according to IEC 60534-6, VDI/VDE 3847, or SAMSON integral attachment
Attachment to rotary actuators according to VDI/VDE 3845
Attachment to double-acting actuators with Type 3710 Reversing Amplifier
Any positioner mounting position possible
Simple one-knob, menu-driven operation
Easy-to-read display in any mounting position thanks to rotatable reading direction
Variable automatic start-up
Preset parameters, only values deviating from the standard need to be adjusted
Calibrated travel sensor without gears susceptible to wear
All parameters saved in non-volatile EEPROM
Two-wire system with small electrical load of 300 Ω
Tight-closing function can be activated
Automatic zero monitoring
Two standard programmable position alarms

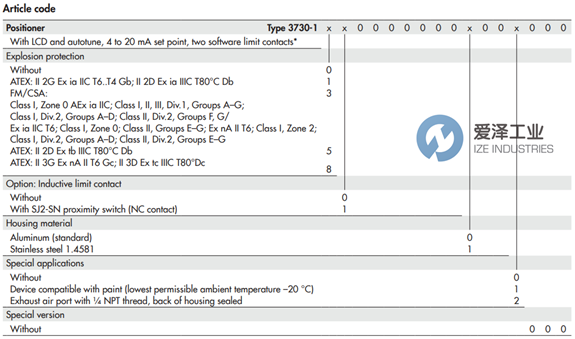

SAMSON定位器3730-1系列选型
SAMSON定位器3730-1系列其他常用型号:
SAMSON 3730-10000000000000000.04
SAMSON 3730-10000000000000000.02
SAMSON 3730-10000000000000000.03
SAMSON 3730-10000000000000000.01
SAMSON Positioner NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SAMSON定位器3730-10000000000000000.04的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for SAMSON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
SAMSON定位器3730-1系列3730-10000000000000000.04技术参数及选型
