DANFOSS压力变送器MBS3000 060G1125技术参数
Product details | |
Gross weight | 0.17 kg |
Net weight | 0.15 kg |
EAN | 5702423084180 |
+ supply | Pin 1 |
- common | Pin 2 |
Accuracy, max. +/- FS [%] | 0.01 |
Accuracy, typical +/- FS [%] | 0.005 |
Adj. zero point and span | No |
Ambient temperature range [°C] [Max] | 85 °C |
Ambient temperature range [°C] [Min] | -40 °C |
Ambient temperature range [°F] [Max] | 185 °F |
Ambient temperature range [°F] [Min] | -40 °F |
Approval | ATEX |
Approval comments | ATEX Ex ec IIA T4 Gc |
Compensated temp. range [°C] [Max] | 80 °C |
Compensated temp. range [°C] [Min] | 0 °C |
Compensated temp. range [°F] [Max] | 176 °F |
Compensated temp. range [°F] [Min] | 32 °F |
Electrical conn. Male/Female | Male and Female |
Electrical connection | DIN-plug |
Electrical connection size | Pg 9 |
Electrical connection standard | EN 175301-803-A |
Enclosure rating IP | IP65 |
Flush diaphragm | No |
High Clipping Level | 22.4 |
Identical product | 060G4079 |
International Article Number | 5702423084180 |
Intrinsically safe | No |
Low Clipping Level | 3.6 |
Medium temperature range [°C] [Max] | 85 °C |
Medium temperature range [°C] [Min] | -40 °C |
Medium temperature range [°F] [Max] | 185 °F |
Medium temperature range [°F] [Min] | -40 °F |
Non-linearity BFSL ±FS [%] | 0.005 |
Output signal | Current |
Output signal [mA] [Max] | 20 mA |
Output signal [mA] [Min] | 4 mA |
Overload pressure max. [bar] | 60 bar |
Overload pressure max. [psi] | 870 psi |
Packing format | Multi pack |
Pressure connection HEX [mm] | 27 mm |
Pressure connection size | 1/4 |
Pressure connection standard | EN 837 |
Pressure connection type | G |
Pressure Male/Female | Male |
Pressure range [bar] [Max] | 10 bar |
Pressure range [bar] [Min] | 0 bar |
Pressure range [psi] [Max] | 145.04 psi |
Pressure range [psi] [Min] | 0 psi |
Pressure reference | Gauge (relative) |
Product group | Sensors |
Product name | Pressure transmitter |
Pulse-snubber | No |
Quantity per packing format | 14 pc |
REACH Candidate List substances >0.1% | Lead (CAS no. 7439-92-1) |
Response time max. [ms] | 4 ms |
Specification key | MBS 3000-2011-A1AB04-0 |
Supply voltage [V] DC [Max] | 32 V |
Supply voltage [V] DC [Min] | 9 V |
Type | MBS 3000 |
DANFOSS压力变送器MBS3000 060G1125产品介绍
压力变送器，MBS 3000，0.00 bar - 10.00 bar，0.00 psi - 145.04 psi
压力单位参考：表压（相对），
输出信号：电流，
电气连接：DIN 插头，
压力连接类型：G，
压力连接尺寸：1/4
Pressure transmitter, MBS 3000, 0.00 bar - 10.00 bar, 0.00 psi - 145.04 psi
Pressure unit reference: Gauge (relative),
Output signal: Current,
Electrical connection: DIN-plug,
Pressure connection type: G,
Pressure connection size: 1/4

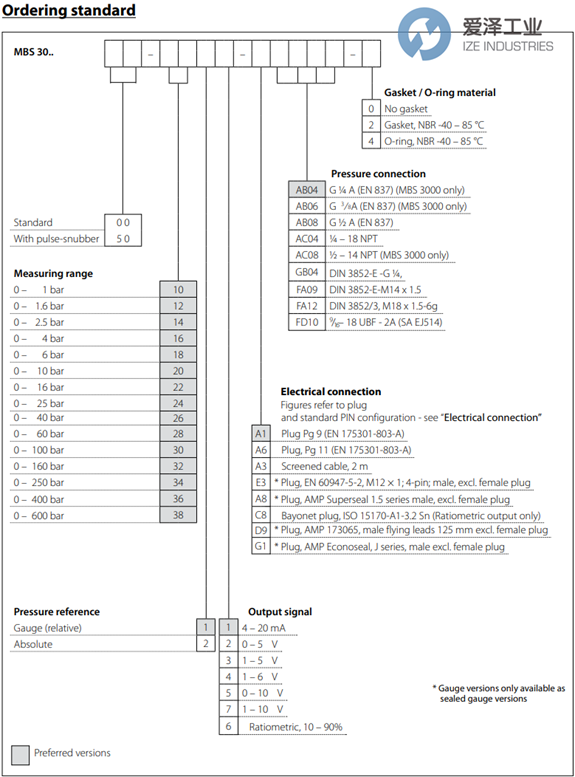

DANFOSS压力变送器MBS30系列选型
DANFOSS压力变送器MBS3000系列其他常用型号：
DANFOSS MBS3000 060G1141
DANFOSS MBS3000 060G1140
DANFOSS MBS3000 060G1137
DANFOSS MBS3000 060G1136
DANFOSS MBS3000 060G1135
DANFOSS MBS3000 060G1133
DANFOSS MBS3000 060G1125
DANFOSS MBS3000 060G1124
DANFOSS MBS3000 060G1123
DANFOSS MBS3000 060G1122
DANFOSS MBS3000 060G1113
DANFOSS MBS3000 060G1112
DANFOSS MBS3000 060G1111
DANFOSS MBS3000 060G1110
DANFOSS MBS3000 060G1109
DANFOSS MBS3000 060G1107
DANFOSS MBS3000 060G1106
DANFOSS MBS3000 060G1105
DANFOSS MBS3000 060G1104
DANFOSS MBS3000 060G1102
