AUCOM软启动器CSXI-055-V4-C1技术参数

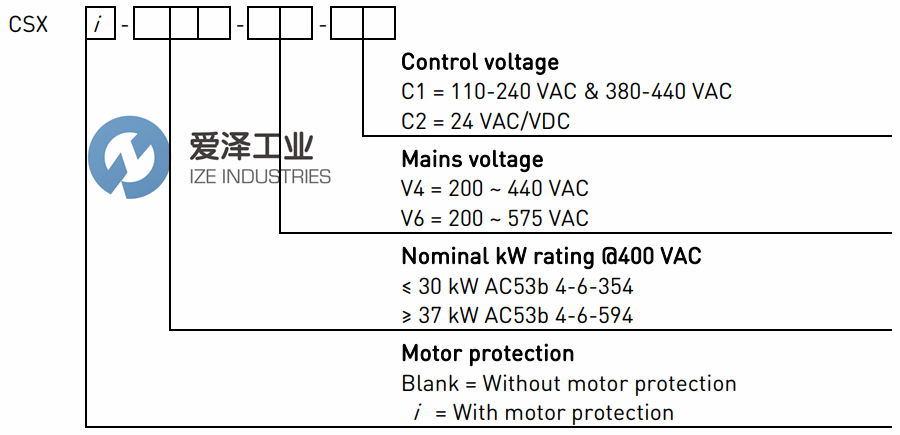

Model Code | CSXi-055-V4-C1 |
Mains protection | i = With motor protection |
Nominal kW rating a400 VAC | ≤30 kW AC53b 4-6-354 |
Mains voltage | V4 = 200 ~ 440 VAC |
Control voltage | C1 = 110-240 VAC & 380-440 VAC |
AUCOM软启动器CSXi系列介绍
体积小巧
CSXi 是一种紧凑轻便的装置，因此适合安装在狭小的空间内，是现有电机控制中心中旧启动器的替代品。
集成旁路接触器
集成旁路接触器通过减少选择和连接附加设备的需要来简化安装。由于接触器已包含在启动器中，因此安装的整体尺寸也更小。在电机运行时绕过启动器还可以减少热量，因此启动器通常可以安装在没有额外通风的情况下。
基本电机保护
除了软启动和软停止的好处，可以提高设备的使用寿命和效率，CSXi 还可以保护电机和负载在运行过程中免受损坏。
CSXi 模拟电机温度以防止操作过载，旁路过载保护可保护启动器免受严重的电流尖峰影响。启动器还监控启动所用的时间，如果电机无法在允许的时间内启动，则会跳闸，防止负载堵转。
CSXi 还可以防止电源频率和电流的波动以及不正确的安装。
Compact size
The CSXi is a compact and lightweight unit, so it is suitable for installation in small spaces and is the ideal replacement for older starters in existing motor control centres.
Integrated bypass contactors
Integrated bypass contactors simplify installation by reducing the need to select and connect additional equipment. Because the contactors are already contained within the starter, the overall size of the installation is also smaller. Bypassing the starter while the motor is running also reduces the amount of heating, so the starter can usually be installed with no additional ventilation.
Essential motor protection
In addition to the benefits of soft start and soft stop, which improve the operating life and efficiency of your equipment, the CSXi also protects your motor and load from damage during operation.
The CSXi models the motor's temperature to prevent against operational overload, and bypass overload protection safeguards the starter from severe spikes in current. The starter also monitors the time taken to start and will trip if the motor cannot start within the allowed time, protecting against stalled loads.
The CSXi also protects against fluctuations in mains frequency and current, as well as incorrect installation.
AUCOM软启动器CSXi系列选型
AUCOM软启动器CSXi系列其他常用型号：
AUCOM CSXi-007-V6-C1
AUCOM CSXi-015-V6-C1
AUCOM CSXi-018-V6-C1
AUCOM CSXi-022-V6-C1
AUCOM CSXi-030-V6-C1
AUCOM CSXi-037-V6-C1
AUCOM CSXi-045-V6-C1
AUCOM CSXi-055-V6-C1
AUCOM CSXi-075-V6-C1
AUCOM CSXI-055-V4-C1
AUCOM CSXi-110-V6-C1
AUCOM Soft Starter NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于AUCOM软启动器CSXI-055-V4-C1的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for AUCOM products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
AUCOM软启动器CSXi系列CSXI-055-V4-C1技术参数及选型
