ITALVIBRAS电机MICRO系列技术参数
CATEGORY | II 3 D |
LEVEL OF PROTECTION | Ex tc IIIC T100°C Dc IP65 |
TEMPERATURE CLASS | T5 (100°C) |
AREAS OF USE | 22 |
Power supply | Three-phase voltage from 24V to 480V (except M3/4-S02),50Hz or 60Hz |
Polarity | 2 poles. |
Functioning | Continual service (S1) at maximum declared centrifugal force and electric power. |
Centrifugal force | Range extended to 65 Kgf. (63.8 KN), |
Insulation class | Class F (155°C). |
Electric motor | Three-phase and single−phase asynchronous type. |
ITALVIBRAS电机MICRO系列介绍
MICRO 系列专为在需要减小离心力和减小整体振动器尺寸的过程中的持续工业服务而设计。MICRO 振动器用于化学工业、食品工业、制药、包装和一般自动化中使用的自动机器中的进料、运输、筛选、分级、分离过程、压实等众多应用。
The MICRO series has been designed for continual industrial service in processes where a reduced centrifugal force and reduced overall vibrator size are required. MICRO vibrators are used in numerous applications in feeding, transport, screening, sizing, separation processes, compaction in the automatic machines used in the chemical industry, food industry, pharmaceuticals, packaging and automation in general.
ITALVIBRAS电机MICRO系列选型
ITALVIBRAS电机MICRO系列其他常用型号:
ITALVIBRAS M3/45-S02
ITALVIBRAS M3/20-S02
ITALVIBRAS M3/4-S02
ITALVIBRAS MOTOR NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ITALVIBRAS电机M3/20-S02的疑问,请随时与我们沟通(021-31006702)。我们将尽全力解决您的问题。
If you have any question for ITALVIBRAS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.

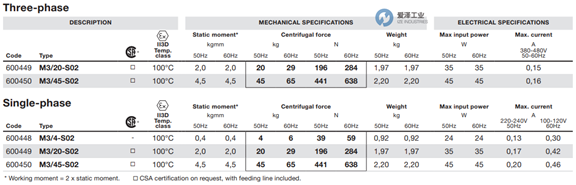

ITALVIBRAS电机MICRO系列M3/20-S02技术参数及选型
