SEW刹车盘BMG2 1836706产品介绍
Motor Brake for DT90/DV100 Motors, 20 Nm
Sew motor brakes operate using a two-coil system. The pressure plate is forced against the brake disc by the brake springs when the electromagnet is deenergised, which slows down the motor. When the brake coil is connected to a DC supply the spring force is overcome by a magnetic force which draws the pressure plate into contact with the brake coil body, allowing the rotor to turn.
The short response time of the SEW brake system ensures a faster start-up time with minimal start-up heating, reducing energy consumption and brake wear and improving process times.
Motor Brake Specifications
For motor size DT90/DV100
Maximum braking torque – 20 Nm
Response time 0.007 seconds
Braking application time 0.012 seconds
用于 DT90/DV100 电机的电机制动器,20 Nm
缝纫电机制动器使用双线圈系统运行。 当电磁铁断电时,制动弹簧将压盘压在制动盘上,从而使电机减速。 当制动线圈连接到直流电源时,弹簧力被磁力克服,磁力将压力板拉到与制动线圈主体接触,从而使转子转动。
SEW 制动系统响应时间短,可确保更快的启动时间和最小的启动发热,从而减少能耗和制动器磨损并缩短处理时间。
马达刹车规格
适用于电机尺寸 DT90/DV100
最大制动力矩 – 20 Nm
响应时间 0.007 秒
制动应用时间 0.012 秒
SEW刹车盘部分选型
SEW刹车盘其他常用型号:
SEW BMG61
SEW BMG122
SEW BMG2 1836706
SEW Brake disc NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年,定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气,液压以及气动解决方案的合作伙伴,我们利用我们的全球协作团队,为客户提供先进解决方案,市场知识以及相关增值服务来帮助优化客户的工作效率,提高可靠性和安全性,致力于成为工业产品和解决方案的优质渠道。
如果有任何关于SEW刹车盘BMG2 1836706的疑问,请随时致电我们,爱泽工业(021-31006702)。我们将尽全力解决您的问题。
If you have any question for SEW products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.

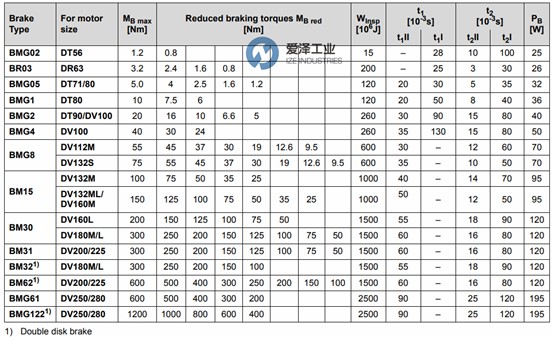

SEW刹车盘BMG2 1836706技术参数
