ATB电机CD90S-4Y3_2技术参数
Engine type: CD90S-4Y3_2 Size: 90 |
Number of electrical poles: 4 Variant: Y3_2 |
Efficiency class 1: IE3 Premium Efficiency Operating mode: S1-S7, S9, S10 |
Thermal class 1: F to B P2 output [kW]: 1.1 |
Ambient temperature max. ° C: 40 Ambient temperature min. ° C: -20 |
Speed 1 [1 / min]: 1455 Circuit 1: D |
Voltage 1 [V]: 220 Circuit 2: Y |
Voltage 2 [V]: 380 Frequency 1-2 [Hz]: 50 |
Switching on / engine start: direct Special design: special flange |
Special design: suitable for Zone 1 or 21 Design: B5 |
Flange / size: FF130 Cable entry: Type DRF |
Cable entry position SEW: normal cable entry (Number x thread): 2xM25 without screw connections |
KLK position SEW: 270 ° Protection class IP: 66 |
VITON sealing ring: Yes Type of balancing: Half-wedge balancing |
Pinion DMR standard shaft [mm]: 14 Ventilation: Electrically conductive fan |
FI frequency 1 [Hz]: 5-120 FI operation: Yes |
Signage: FU label according to layout 1550588 Expl. Protection gas ATEX: II 2G Ex db IIC T4 Gb |
Expl. Protection dust ATEX: II 2D Ex tb IIIC T120 ° C Db certificates ATEX: PTB 14 ATEX 1010 X |
Expl. Protection gas other: CEL grade 3 painting: only primed 2K |
CCC certificates: 2020312301002336 Motor protection: PTC sole protection |
As a replacement for engine number 539283001. |

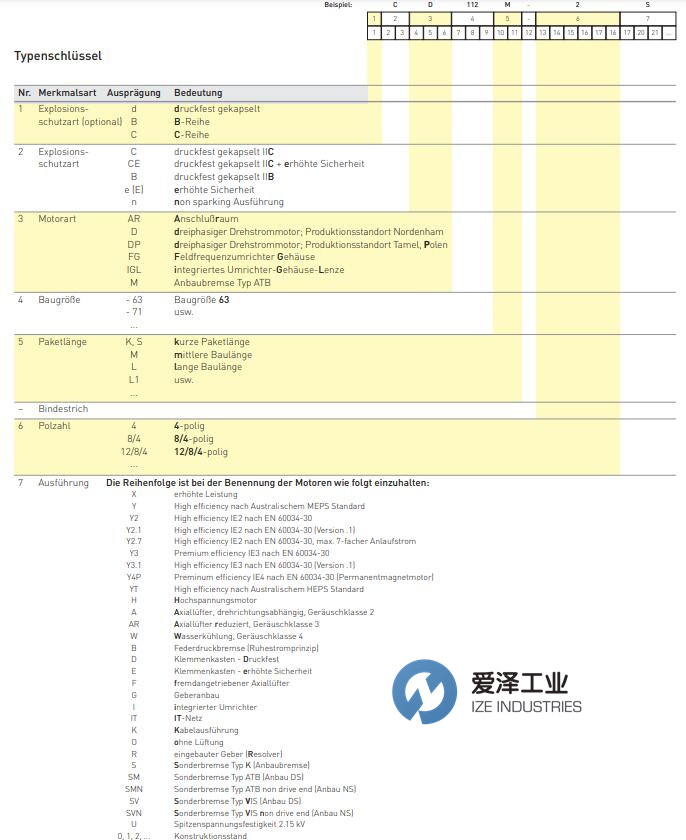

ATB电机CD系列介绍及选型
The normal design of the motors of the CD series corresponds to the highest group IIC and temperature class T4, which include all lower groups and temperature classes. The normal version of the series BD and dBD correspond to group IIB and temperature class T4.
CD系列电机的常规设计对应于最高的IIC组和温度等级T4，其中包括所有较低的组和温度等级。BD和dBD系列的常规版本对应于IIB组和T4温度等级。
ATB电机CD系列其他常用型号：
ATB CD90S-4Y3_2
ATB CD80M1-4
ATB CD132S2
ATB CD160M1
ATB CD160M2
ATB CD160L
ATB CD180M
ATB CD200L1
ATB CD200L2
ATB CD225M
ATB CD250M
ATB CD280S
ATB CD280M
ATB CD315S
ATB CD315L1
ATB CD315L2
ATB CD315L3
ATB motor NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于ATB电机CD90S-4Y3_2的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for ATB products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
