BRECO同步带32AT10/1010 BFX技术参数
Timing Belt | AT-Series |
Widths (mm) | 32 |
Pitch (mm) | AT10 |
Code | BFX |
Ultimate Tensile Strength (N/10mm belt width) | 6400 |
Maximum Allowable Tensile Strength(N/10mm belt width) | 1600 |
Specific Belt Stiffness Steel Reinforced(Per unit width/length) | 4.00 x 105N |
Specific belt Mass (per 10mm belt width, steel reinforced) | 0.058 kg/m |
Power Transmission | ≤ 70 kW |
Rotational Speed | ca. 10000 min-1 |
Peripheral Speed | ca. 60 ms-1 |
Synchronous Pulley | ab z=15 |
BRECO同步带AT系列产品介绍
AT系列同步带被世界公认为高速应用的黄金标准齿形。AT系列具有用于动力传输的高强度，以及用于线性驱动应用的高精度和定位。
高强度张力构件，强度高达标准T系列和英制节距皮带的2倍
增加张力构件弹簧刚度，以实现更好的可重复性并缩短设置时间
齿剪切强度比标准皮带高45%
减少背隙（零背隙皮带轮可实现最高精度）
提供 AT3、AT5、AT10和AT20。
The AT-series of timing belt is regarded world-wide as the gold-standard tooth profile for high-speed applications. AT-series feature high strength for power transmission, and high accuracy and positioning for linear drive applications.
High strength tension members up to 2X the strength of standard T series and Imperial pitch belts
Increased tension member spring rate for better repeatability and reduced setting time
High tooth shear strength up to 45% higher than standard belts
Reduced backlash (zero backlash pulleys available for highest accuracy)
Bifilar tension member design for true
Available in AT3, AT5, AT10 and AT20.

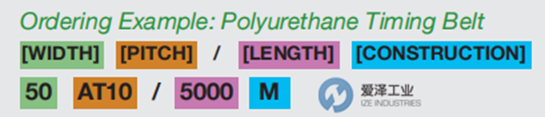

BRECO同步带AT系列选型
BRECO同步带AT系列其他常用型号：
BRECO 32AT10/1010 BFX
BRECO 32AT10/440 SFX
BRECO 32AT10/500 BFX
BRECO 32AT10/530 BFX
BRECO 32AT10/560 BFX
BRECO 32AT10/600 SFX
BRECO 32AT10/610 BFX
BRECO 32AT10/630 BFX
BRECO 32AT10/660 BFX
BRECO 32AT10/700 BFX
BRECO 32AT10/720 BFX
BRECO 32AT10/730 SFX
BRECO 32AT10/780 BFX
BRECO 32AT10/800 BFX
BRECO 32AT10/810 BFX
BRECO 32AT10/840 BFX
BRECO 32AT10/850 BFX
BRECO 32AT10/880 BFX
BRECO timing belt NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向制造工业提供高端制造技术和设备。代理经营世界优质的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于BRECO同步带32AT10/1010 BFX的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for BRECO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
