BUSAK+SHAMBAN(B+S)格莱圈TG5201250-Z80V产品参数

BUSAK+SHAMBAN(B+S)格莱圈TG系列产品介绍

The Zurcon Roto Glyd Ring S is used to seal shafts, axles, bores, rotary transmission leadthroughs, journals, swivels etc. with rotary or oscillating movement.

The seal is double-acting and can be exposed to pressure from one, or from both sides.

Application examples

- For sealing shafts, axels and rotary transmission leadthroughs with slow rotary or oscillating movement

- Can also be used to seal rotary joints at increased rotating speeds even when exposed to pressure, e.g. rotary indexing tables

- Rotary connections with swivel movement, even when exposed to high pressure, e.g. damping units

Advantages

- Available for shaft and bore sealing applications

- Low friction

- Stick-slip-free starting, no sticking

- High abrasion resistance and dimensional stability

- Simple groove design, small groove dimensions

- Available in material Z51 and Z52 for all shaft sizes up to 2200 mm diameter and for all bore sizes up to 2300 mm

- Available in material Z80 for all shaft sizes up to 2600 mm diameter and for all bore sizes up to 2700 mm

Zurcon Roto Glyd Ring S 用于密封旋转或摆动运动的轴、轴、孔、旋转传动装置、轴颈、转环等。

密封件是双作用的，可以承受来自一侧或两侧的压力。

应用实例

- 用于密封慢速旋转或摆动运动的轴、轴和旋转传动装置

- 也可用于以更高的转速密封旋转接头，即使在压力下，例如旋转分度台

- 具有旋转运动的旋转连接，即使暴露在高压下，例如阻尼单元

好处

- 可用于轴和孔密封应用

- 低摩擦

- 无粘滑启动，不粘连

- 高耐磨性和尺寸稳定性

- 简单的凹槽设计，小凹槽尺寸

- 提供Z51和Z52材料，适用于直径最大2200毫米的所有轴尺寸和最大2300毫米的所有孔尺寸

- 可提供 Z80 材料，适用于直径最大为2600毫米的所有轴尺寸和最大为2700毫米的所有孔尺寸

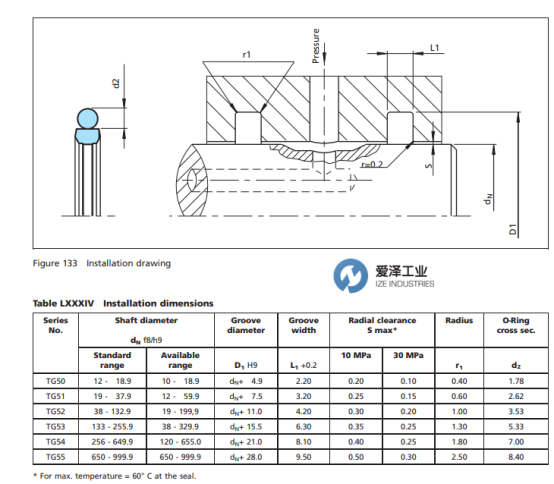

选型

BUSAK+SHAMBAN(B+S)格莱圈TG系列其他常见型号：

BUSAK+SHAMBAN TG5201250-Z51N

BUSAK+SHAMBAN TG5201250-Z51T

BUSAK+SHAMBAN TG5201250-Z52N

BUSAK+SHAMBAN TG5201250-Z52T

BUSAK+SHAMBAN TG5201250-Z80N

BUSAK+SHAMBAN TG5201250-Z80T

BUSAK+SHAMBAN TG5201250-Z80V

BUSAK+SHAMBAN(B+S) Seal NEW + ORIGINAL+ ONE YEAR WARRANTY

爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。

如果有任何关于BUSAK+SHAMBAN(B+S)格莱圈TG5201250-Z80V的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。

If you have any question for BUSAK+SHAMBAN(B+S) products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.ize-industries.com.
