KUBLER编码器5020系列技术规格
Technical data | |
Dimension | Ø 50 mm |
Shaft type | 6 mm hollow shaft, through |
Flange type | Ø 50.80 mm |
Working temperature | ﹣40 ℃ ... +85 ℃ |
Protection level | IP65 |
Connection types | Axial cable |
Max. rotational speed | 12.000 min |
Weight | 400 g |
Scanning | optical |
Resolution max. | 5.000 ppr incremental |
Supply voltage | 5 V DC |
Interfaces | Push-pull |
KUBLER编码器5020系列介绍
由于采用Safety-Lock™设计的坚固轴承结构，Sendix 5000和5020具有很高的抗振动性且防止安装错误。
坚固的外壳，高达IP67的高防护等级以及-40°C至+ 85°C的宽温度范围，使该产品系列成为所有应用的理想编码器。
•由于“ Safety-LockTM设计”中坚固的轴承结构，增加了抗振性和安装误差容忍度，消除了机器停机时间和维修费用。
•确保很高的现场击穿安全性，并且由于其耐压铸外壳和高达IP67的防护等级，因此也适合在室外使用。
•空心轴编码器上的拆卸环。
•宽温度范围，-40℃ ... + 85℃。
Due to their sturdy bearing construction in Safety-Lock™ Design,the Sendix 5000 and 5020 offer high resistance against vibration and installation errors.
The rugged housing, high protection level of up to IP67, as well as the wide temperature range of -40°C up to +85°C, make this product range the perfect encoder for all applications.
• Increased resistance against vibrations and tolerance of installation errors, elimination of machine downtime and repairs thanks to sturdy bearing construction in “Safety-LockTM Design”.
• Ensures highest safety against field breakdowns and is thus suitable also for outside use thanks to its resistant die-cast housing and protection up to IP67.
• Undetachable clamping ring on hollow shaft encoders.
• Wide temperature range, -40℃ ... +85℃.

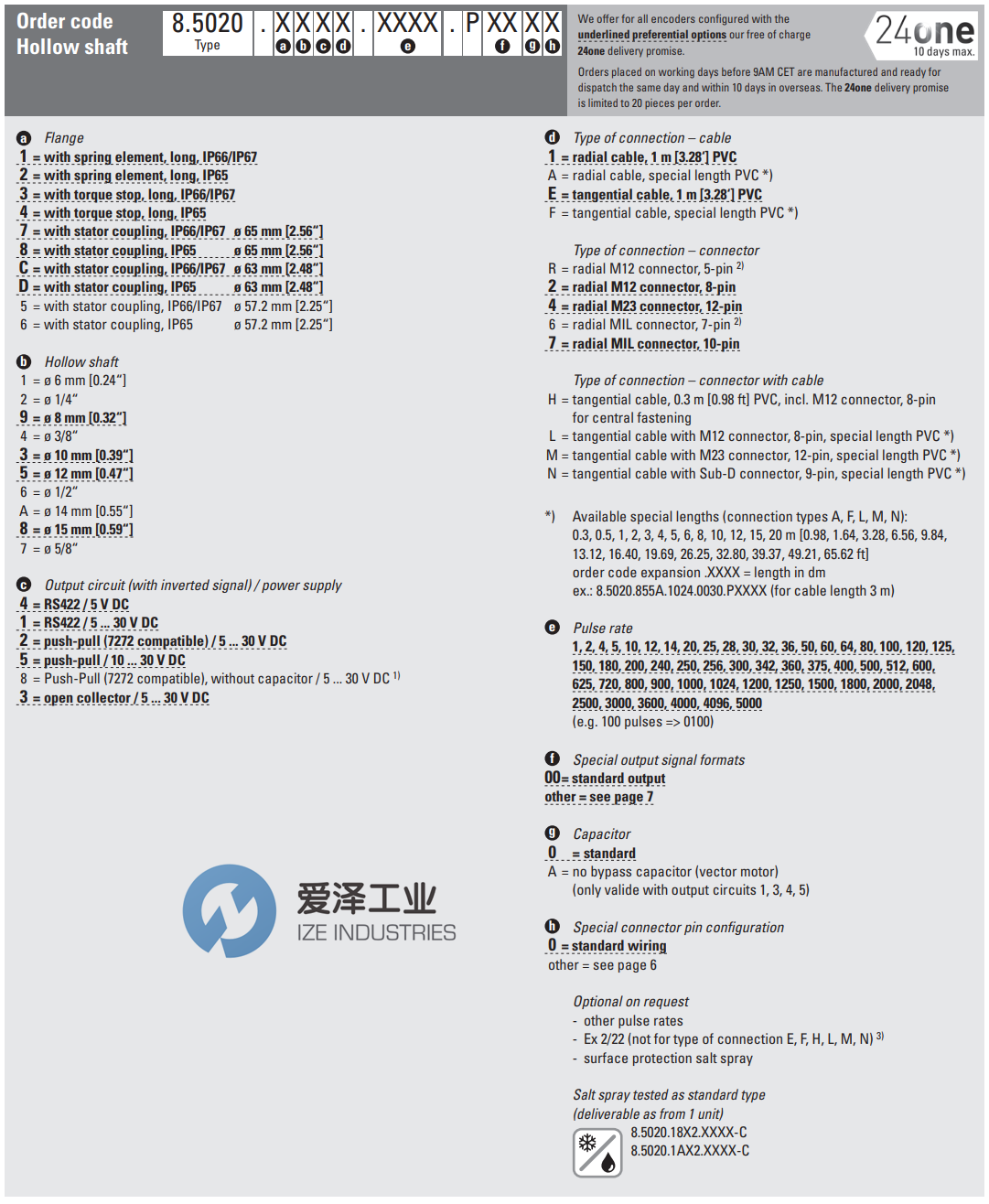

KUBLER编码器5020系列选型
KUBLER编码器5020系列其他常用型号：
KUBLER 8.5020.0050.1024.S110.0150
KUBLER 8.5020.0050.2048.S110.0015
KUBLER 8.5020.0050.1024.S110.0015
KUBLER 8.5020.4551.1024
KUBLER 8.5020.D55A.5000.0020
KUBLER 8.5020.284A.1024.0050
KUBLER 8.5020.D55A.5000.0020
KUBLER 8.5020.4551.1024.9083
KUBLER 8.5020.4551.1000
KUBLER 8.5020.4020.2048.S062
KUBLER 8.5020.0064.1024.S222
KUBLER 8.5020.0040.1024.S124
KUBLER 8.5020.4551.2048.9083
KUBLER 8.5020.4020.2048.S079
KUBLER 8.5020.0851.1024.4025.40E0
KUBLER 8.5020.2352.0028.EX
KUBLER 8.5020.0810.2048.S065
