爱泽工业2024年8月部分到货产品专题及库存
——主令控制器篇
如下为我司爱泽工业IZE_Industries本月到货主令控制器相关产品，欢迎致电索取样本资料和产品信息。
GESSMANN主令控制器P5100300135 V62LPM GESSMANN主令控制器V14.1L
GESSMANN主令控制器VV8RB38DK-3Z GESSMANN主令控制器PW1200822-030
S+B主令控制器VCS 09614AKE40 S+B主令控制器VCS09611ER T240
S+B主令控制器VCS09611KKVRT1.1 S+B主令控制器VNS02FA-Y18AKRG41Z10PPQ55
S+B主令控制器VNS022FEA-X18AKG41Z10P10PPQ55 SCHNEIDER主令控制器XKD-F12240240C
GESSMANN主令控制器V6 / VV6系列介绍
多轴控制器 V6/VV6 有单轴或多轴选项，是一种常用于起重机和起重应用的坚固控制器。模块化设计和与手柄的多种组合可能性使开关设备可以广泛使用。V6/VV6 可抵抗油、海上条件（例如海上/船舶）、通常来自太阳的紫外线辐射。
The multi-axis controller V6 / VV6 is available in either single-axis or multi-axis options and is a robust controller used commonly in crane and hoisting applications. The modular design and many possibilities of combination with our handles enables the switching device to be used universally. The V6 / VV6 is resistant to oil, maritime conditions e.g. offshore / vessels, UV radiation typically from the sun.
GESSMANN主令控制器V14系列介绍
V14 是一款坚固耐用的开关设备，适用于远程控制和电液应用。由于采用模块化设计，该控制单元可广泛使用。集成传感器系统具有采用导电塑料技术的信号和电位计轨道。开关触点也可作为选配。
The V14 is a robust switching device for remote control and electro-hydraulic applications. Due to its modular design, this control unit can be used universally. The integrated sensor system has signal and potentiometer tracks in conductive plastic technology. Switching contacts are also available as an option.
GESSMANN主令控制器V8/VV8系列介绍
V8/VV8 是一款坚固耐用的操纵杆，常用于电动液压应用。V8/VV8 系列具有多种输出选项，包括电压、电流和开关触点以及多种握把选项，可高度定制。
The V8/VV8 is a robust joystick commonly used in electro-hydraulic applications. With many output options including voltage, amperage and switch contacts and many grip options the V8 / VV8 series is hugely customisable.

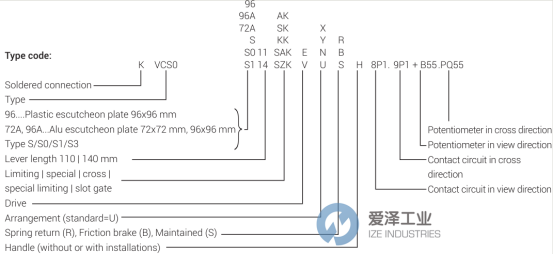

S+B主令控制器VCS0系列介绍及选型
对于中型应用，建议使用这种经过数十年使用验证的操纵杆。具有特殊防漏电流、耐热和耐寒绝缘的驱动块支撑所有机械部件，并作为导电部件的接触保护。可选的零位、喇叭或安全触电可以集成在驱动块中，以节省空间并保护安装。高达 250 V 和 10 A 的手指安全双接触元件采用正锁定智能安装，此外，它们还牢固地法兰连接到驱动块上。各种连接链可用于机械限制或引导运动方向。
For medium-duty applications, recommend this joystick which has been proven in use for decades. The drive block with special leak-current-proof, heat-resistant and cold-resistant insulation supports all mechanical components and serves as contact protection for the electrically conductive parts. An optional zero position, horn, or deadman's contact can be integrated in the drive block for space-saving and protected installation. Finger-safe double contact elements for up to 250 V and 10 A are fitted intelligently with positive locking and additionally they are securely flanged onto the drive block. Various connecting links are available for mechanical limiting or guidance of the direction of movement.

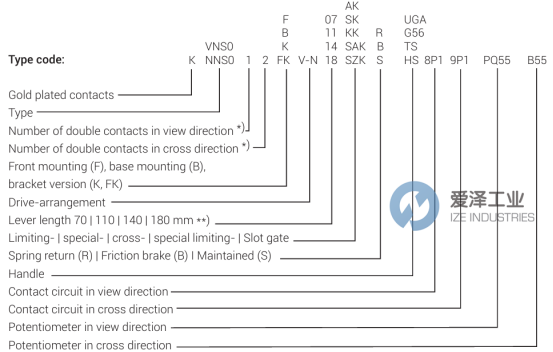

S+B主令控制器VNS0系列介绍及选型
VNS0带有铝压铸控制台和金属齿轮的极其坚固的金属操纵杆。它们可抵抗臭氧、紫外线辐射、油和海洋性气候，特别适合在恶劣条件下使用，即使在防爆区域也是如此。它们有单驱动和复合驱动可供选择。通过定制的、适应性强的接触元件，智能模块化系统最多可安装 12 个单元，每个单元都有两个开关触点。这些可以沿 X 方向、Y 方向和 Z 方向法兰连接，也可以串联连接。由于有弹簧复位和槽口，最多有 9 个接触元件。槽口和凸轮盘可以从广泛的标准范围中选择，也可以根据客户要求进行编程。银可选触点或金触点。
The VNS0 and the NNS0 are extremely robust metal joysticks with aluminum die-cast console and metal gear. Resistant to ozone, UV radiation, oil, and maritime climates, they are particularly suited for hard use, even in Ex areas. They are available with single drive or compound drive. With customized, adaptable contact elements, the intelligent modular system enables installation of up to 12 units, each with two switch contacts. These can either be flanged on in the X-direction, Y-direction, and Z-direction or connected in series. With spring return and notches, nine contact elements are the maximum. Notches and cam disks can be selected from an extensive standard range, or they can be programmed as requested by the customer. Silver or gold contacts are optional.
主令控制器常用型号：
GESSMANN P5100300135 GCT1900171/020-01 V62LPM
GESSMANN PW1200822-030 V61LM
GESSMANN PW70 524004500
GESSMANN S22L-2ZP-A05P021
GESSMANN S22L-2ZP-A05P024
GESSMANN S22L-2ZP-A05P441
GESSMANN S22L-2ZP-A05P444
GESSMANN S22LB5-3Z-A06
GESSMANN S22LM-2Z-X-A05P023
GESSMANN S22RM-2RP-A05P444
GESSMANN T131 52400300
GESSMANN T134 524001100
GESSMANN T1491 5240046003
GESSMANN T244 524002300
GESSMANN T337 524002600
GESSMANN T374 524001200
GESSMANN V10.1LM-01ZP-A05P254
GESSMANN V11.1LM-01ZP-A05P444
GESSMANN V14.1/L/H EK/103-10
GESSMANN V14.1L
GESSMANN V14.1L-01ZC-A05C66
GESSMANN V14.1LBX-0ZPP-X-P99
GESSMANN V61L-04R-A140
GESSMANN V61R-02ZC-A050C191
GESSMANN V61R-04R-A140
GESSMANN V62LS5PT-01ZP+03ARC-A05P134 +A110C01-X
GESSMANN VV61LB1T-04Z-A150
GESSMANN VV64DV-04Z+04Z-A1400
GESSMANN VV85GK FR/85-228
GESSMANN VV85LB3-2DKWA13-2ZS+2ZS-B-X-A05EPB1
GESSMANN VV85PB3-8DK-Z
GESSMANN VV85RDV-2ZS+2
GESSMANN VV8RB38DK-3Z
S+B VCS 09614AKE40
S+B VCS 09614AKV4040
S+B VCS0.1803102404.594
S+B VCS0.1804655 2162000.2.3
S+B VCS032200
S+B VCS09611AKE-URG4120
S+B VCS09611ER T240
S+B VCS09611KKVRH20-20
S+B VCS09611KKVRT1,1
S+B VCS09611KKV-URG41T1010
S+B VCSO7211ER HDFUZ240
S+B VCSO9611KKEBZ420
S+B VNS 02.18 AKARZ
S+B VNS0.1900597427.428
S+B VNS022.11AKEAR10P.10P
S+B VNS022FEA-X18AKG41Z10P10PPQ55
S+B VNS022FU11KKVB
S+B VNS022FU14AKVR
S+B VNS022KKFUVUGN1RD2GN
S+B VNS02FA-Y18AKRG41Z10PPQ55
S+B VNS0318SKAIPZ40
S+B VCS0.32200
S+B VNSO3FN18AKEZ
SCHNEIDER XKMA9422
SCHNEIDER XKMA9424
SCHNEIDER XKMA9425
SCHNEIDER XKMA9501
SCHNEIDER XKMA9604
SCHNEIDER XKMA991
SCHNEIDER XKMA992
SCHNEIDER XKMC11270
SCHNEIDER XKBE12039
SCHNEIDER XKDF11130240
SCHNEIDER XKBA36237
SCHNEIDER XKBA1630
SCHNEIDER XKDF13440240
SCHNEIDER XKMB152310
SCHNEIDER XKMB252260
SCHNEIDER XKBE34100
SCHNEIDER XKBA36337
SCHNEIDER XKBE36300
SCHNEIDER XKDF13000252
SCHNEIDER XKBA15330NL191
SCHNEIDER XKDF12210210
SCHNEIDER XKBE15220
SCHNEIDER XKBE1222
SCHNEIDER XKMA141172172
SCHNEIDER XKBA3502
SCHNEIDER XKBE11030C
SCHNEIDER XKBA15339
SCHNEIDER XKBA12300NL132
SCHNEIDER XKBE21229
SCHNEIDER XKDF13452000
SCHNEIDER XKMB111260
SCHNEIDER XKBA34028
如果您需要完整的主令控制器的相关技术咨询，请随时致电爱泽工业（021-3100 6702），或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。
If you have any question for JOYSTICK，please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
