爱泽工业2024年3月部分到货产品专题及库存
——CCS和GENESI LUX篇
如下为我司爱泽工业IZE_Industries本月到货CCS和GENESI LUX相关产品，欢迎致电索取样本资料和产品信息。
CCS环形灯HPR2-100RD-M12
GENESI LUX环形灯GEST76-6K-L40-S
GENESI LUX聚光灯GES50-R625-120-T
GENESI LUX背光面板GERE3030-6K-S
GENESI LUX背光面板GERE4040-6K-H6-S
CCS环形灯HPR2系列介绍
HPR2系列环形灯具有“易于使用”、“明亮”和“均匀”的特点。
产品阵容包括丰富的尺寸变化、全彩 (RGB) 型号以及令人满意的配件（例如灯接头支架）。
特征
支持从低角度到高角度
使用独特的照明机制提供来自 LED 的漫射光，不会造成浪费。即使从工件到光单元的距离发生变化，均匀区域也几乎没有变化，因此可以用于多种用途。
以高输出提供漫射光
它使用表面安装的 LED 和经过特殊处理的扩散板，实现高输出下扩散光的均匀照明。
These Ring Lights have "easy to use", "bright", and "uniform" characteristics.
The product lineup includes abundant size variations, full color (RGB) models, and satisfying accessories such as the Light Joint Brackets.
Features
Supports from low angles to high angles
Provides diffused light from the LEDs without waste using a unique illuminating mechanism. Even if the distance from the workpiece to the Light Unit is changed, there is little variation in the uniform region and it can therefore be used for a wide variety of uses.
Provides diffused light at high output
It achieves uniform illumination of diffused light at high output using surface-mounted LEDs and a specially processed diffusion plate.

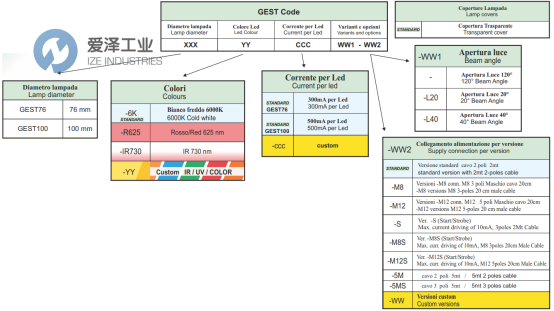

GENESI LUX环形灯GEST系列介绍及选型
快速控制器，允许具有以下模式：PNP、NPN、模拟调节、频闪和半连续使用；
微控制器监控脉冲宽度和最高温度；
带有巨大镜片的模型； 10°、30°、60° 或 90° 透明、缎面和蛋白石盖；
强大而快速的选通模式，具有能量缓冲和选通持续时间控制，最小5 µs起的脉冲。
Fast controller which allows to have the following modes: PNP, NPN, Analog Regulation, Strobe and Semi-Continuous Use;
Microcontroller to monitor the pulse duration and the maximum temperature;
Model with Huge Lenses; 10°, 30°, 60° or 90° transparent, satin and opaline covers;
Powerful and Fast strobe mode with energy buffering and strobe duration control, Min. pulse from 5 µs.

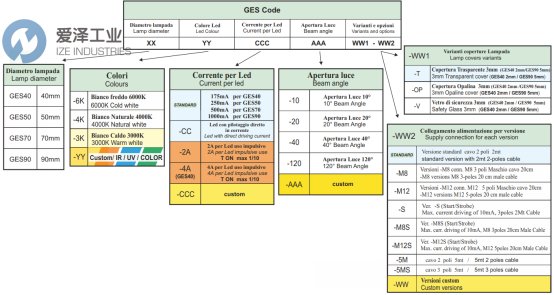

GENESI LUX聚光灯GES系列介绍及选型
聚光灯，适用于机器和系统中的中型和大型表面
LED灯
供电：24Vdc
防护等级: IP67
灯光使用
带摄像头的视觉系统照明器
Spot light for medium and large surfaces, in machines and systems
Led lamp
Supply: 24Vdc
Protection degree: IP67
lighting Use
illuminator for vision systems with cameras

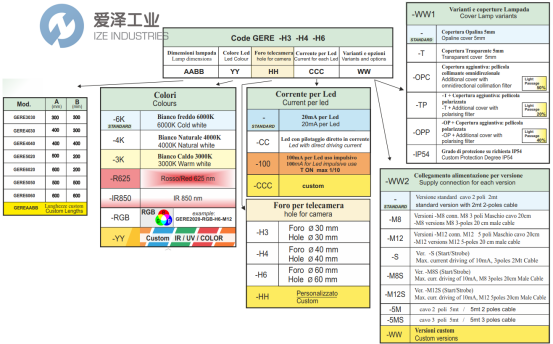

GENESI LUX背光面板GERE系列及选型
用于相机的背光面板和光扩散器，连续或脉冲模式
LED灯
电源：24Vdc
防护等级：IP40
用于带摄像头的视觉系统的照明器
Backlighted panels and light diffusers for cameras, continuous or impulse mode
Led lamp
Supply: 24Vdc
Protection degree: IP40
illuminator for vision systems with cameras
CCS和GENESI LUX灯常用型号：
CCS HPR2-50RD
CCS HPR2-50SW
CCS HPR2-50BL
CCS HPR2-50FC*1
CCS HPR2-75RD
CCS HPR2-75SW
CCS HPR2-75BL
CCS HPR2-75FC*1
CCS HPR2-100RD
CCS HPR2-100SW
CCS HPR2-100BL
CCS HPR2-100FC*1
CCS HPR2-150RD
CCS HPR2-150SW
CCS HPR2-150BL
CCS HPR2-150FC*1
CCS HPR2-200RD
CCS HPR2-200SW
CCS HPR2-200BL
CCS HPR2-200FC*1
CCS HPR2-250RD
CCS HPR2-250SW
CCS HPR2-250BL
CCS HPR2-250FC*1
CCS HPR2-400RD-FT
CCS HPR2-400SW-FT
CCS HPR2-400BL-FT
CCS HPR2-400FC-FT*1
CCS HPR2-100RD-M12
GENESI LUX GEST42-R625-L20-M12
GENESI LUX GEST44-6K-OP
GENESI LUX GEST74-405
GENESI LUX GEST76-6K-OP
GENESI LUX GEST76-625-OP
GENESI LUX GEST76-6K-L20
GENESI LUX GEST76-6K-L40
GENESI LUX GEST100-6K-L20
GENESI LUX GEST100-6K-L40
GENESI LUX GEST122-625-T
GENESI LUX GEST122-6K-OP
GENESI LUX GES40-6K-1A-10-T
GENESI LUX GES40-6K-1A-20-T
GENESI LUX GES40-6K-1 A-40-T
GENESI LUX GES40-6K-1A-120-T
GENESI LUX GES50-6K-20-T
GENESI LUX GES50-6K-40-T
GENESI LUX GES50-6K-120-T
GENESI LUX GES70-6K-20-T
GENESI LUX GES70-6K-40-T
GENESI LUX GES70-6K-120-T
GENESI LUX GES90-6K-20-T
GENESI LUX GES90-6K-40-T
GENESI LUX GES90-6K-120-T
GENESI LUX GERE1004-6K
GENESI LUX GERE1007-6K
GENESI LUX GERE1010-6K
GENESI LUX GERE2010-6K
GENESI LUX GERE3010-6K
GENESI LUX GERE0520-6K
GENESI LUX GERE2020-6K
GENESI LUX GERE3020-6K
GENESI LUX GERE3030-6K
GENESI LUX GERE3030-6K-S
GENESI LUX GERE4030-6K
GENESI LUX GERE4040-6K
GENESI LUX GERE5020-6K
GENESI LUX GERE5050-6K
GENESI LUX GERE6020-6K
GENESI LUX GERE6060-6K
GENESI LUX GERE3030-6K-H3
GENESI LUX GERE3030-6K-H4
GENESI LUX GERE3030-6K-H6
GENESI LUX GERE4030-6K-H3
GENESI LUX GERE4030-6K-H4
GENESI LUX GERE4040-6K-H6-S
GENESI LUX GERE4040-6K-H3
GENESI LUX GERE4040-6K-H4
GENESI LUX GERE4040-6K-H6
GENESI LUX GERE5020-6K-H3
GENESI LUX GERE5020-6K-H4
GENESI LUX GERE5020-6K-H6
GENESI LUX GERE6020-6K-H3
GENESI LUX GERE6020-6K-H4
GENESI LUX GERE6020-6K-H6
GENESI LUX GERE5050-6K-H3
GENESI LUX GERE5050-6K-H4
GENESI LUX GERE5050-6K-H6
GENESI LUX GERE6060-6K-H3
GENESI LUX GERE6060-6K-H4
GENESI LUX GERE6060-6K-H6
如果您需要完整的CCS和GENESI LUX的相关技术咨询，请随时致电爱泽工业（021-3100 6702），或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。
If you have any question for CCS and GENESI LUX，please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
