爱泽工业2023年6月部分到货产品专题及库存
——执行器篇
如下为我司爱泽工业IZE_Industries本月到货执行器相关产品，欢迎致电索取样本资料和产品信息。
DURA VALVE执行器AP063ADA MAX-AIR执行器MT31.S4.F05-F07.CH17
AXEL LARSSON执行器AL77 220-DA F10-07/14 J+J执行器J4C-S20
RAINSSION执行器RC-10 RECO-INOX执行器ERVCR160S2
RTK执行器15E-038B TESCOM执行器ER5000SI-1
TURN-ACT执行器112-1Y3-100-400-A05-B00 VALBIA气动执行器82SR0070-SR115

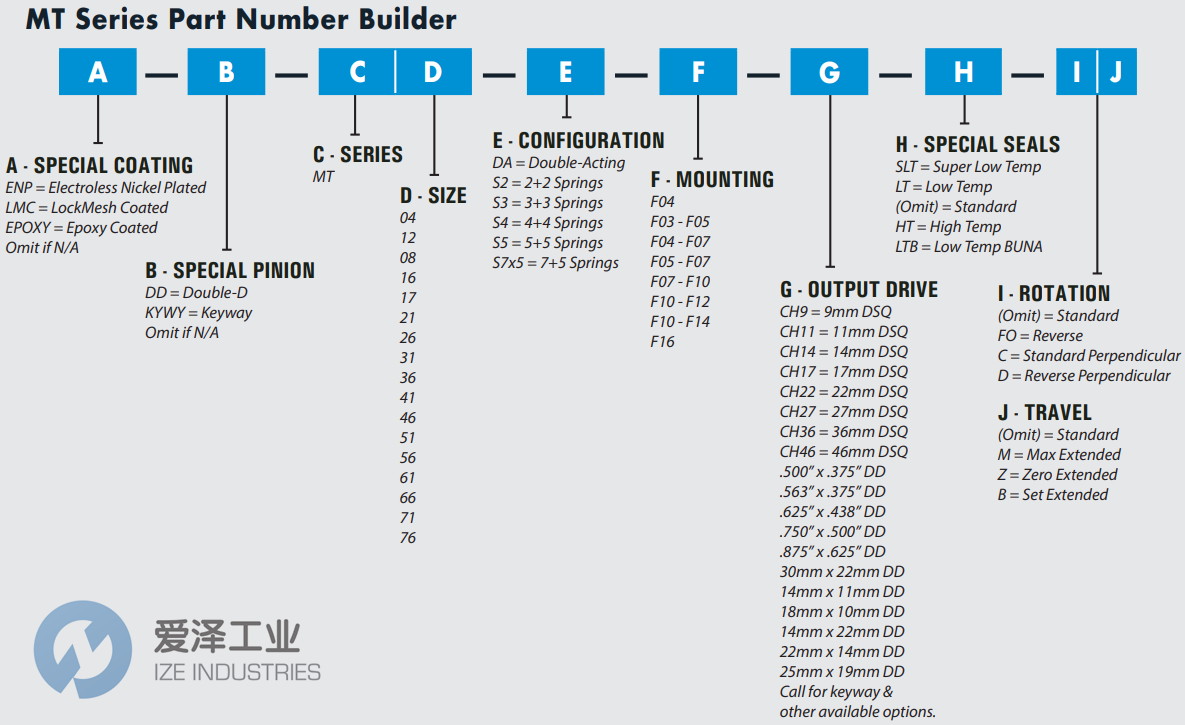

MT 系列齿轮齿条气动执行器延续了 Max-Air 易于集成、灵活定制和可靠运行的传统。 特点包括直接在主体上钻出的两个 ISO 螺栓圆圈图案、配件的 NAMUR 标准安装以及 ±10° 开/关位置调整。
MAX-AIR 齿轮齿条气动执行器采用紧凑型设计产生线性扭矩输出，对双作用和弹簧复位装置使用相同的主体和端盖。
小齿轮齿在活塞的整个长度和冲程中啮合，专为最恶劣的流动条件而设计。小齿轮高度允许手动操作，而无需移除指示器。
所有外部紧固件均为耐腐蚀不锈钢。
MT Series rack & pinion pneumatic actuators continue the Max-Air tradition of easy integration, flexible customization, and reliable operation. Features include two ISO bolt circle patterns drilled directly in the body, NAMUR standard mounting for accessories, and our patented ±10° adjustment for the open/ closed positions.
The MAX-AIR rack & pinion pneumatic actuator produces linear torque output in a compact design utilizing the same body and end caps for double-acting and spring-return units.
The pinion teeth are engaged the full length and stroke of the piston, and designed for the toughest flow conditions. The pinion height allows manual override without needing to remove the indicator.
All external fasteners are corrosion-resistant stainless steel.
J+J执行器J4C系列介绍
四分之一回转执行器
多电压
- 24 至 240 VDC / VAC 50 / 60Hz
- 12 VDC/VAC
无刷电机，
选项，例如 DPS、BSR 和接口，
扭矩从 20NM 到 300NM。
QUARTER TURN ACTUATOR
MULTIVOLTAGE
- 24 to 240 VDC / VAC 50 / 60Hz
- 12 VDC/VAC ONLY
BRUSHLESS MOTOR,
OPTIONS, SUCH AS DPS, BSR AND INTERFACE,
TORQUE FROM 20NM TO 300NM.

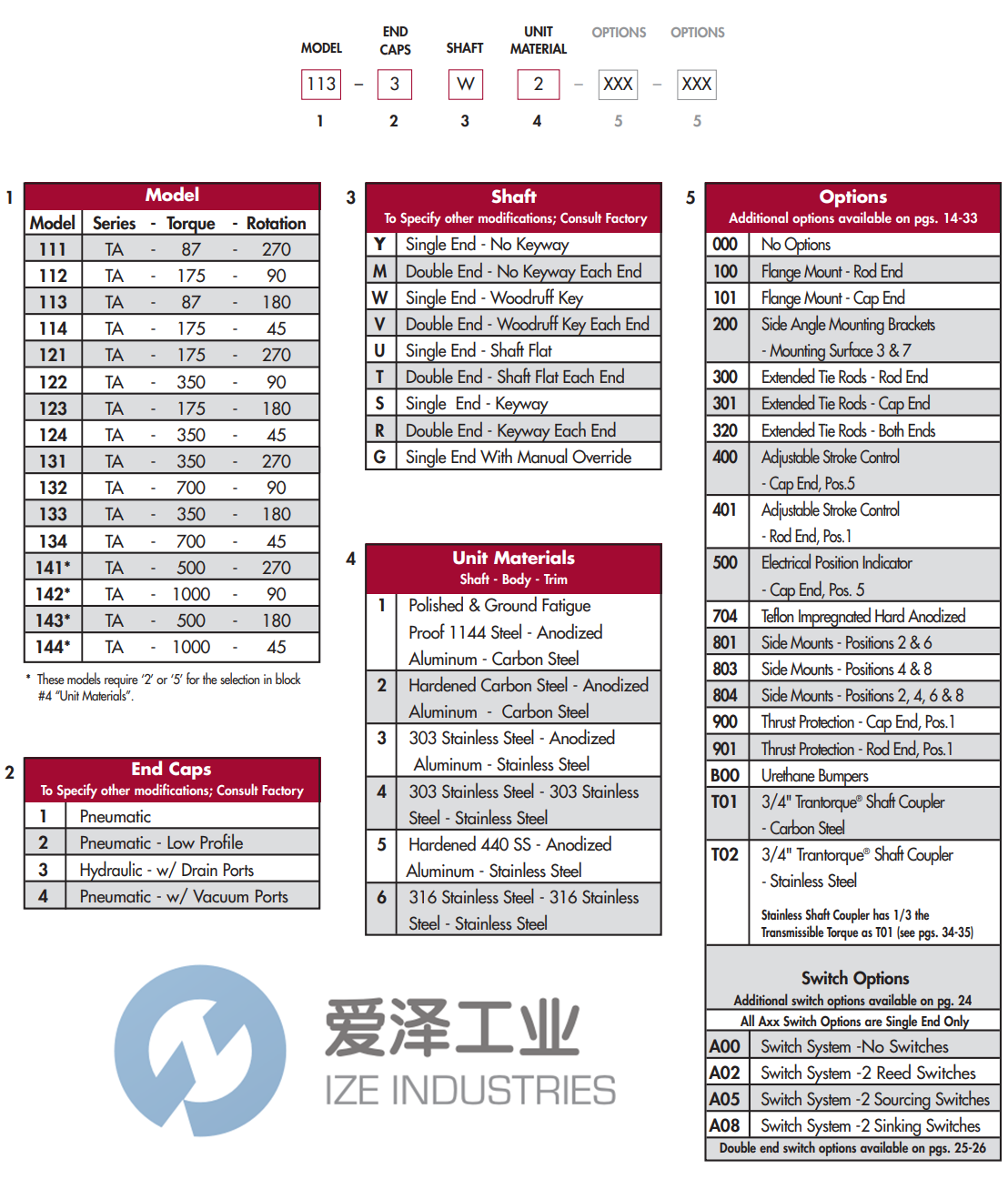

TURN-ACT执行器TA系列介绍及选型
旋转叶片执行器：
• 16 种基本型号，扭矩输出从 87 英寸磅起。 至 1000 英寸磅
• 旋转 45、90、180 和 270 度。
与其他旋转装置相比……Turn-Act 叶片执行器具有：
• 一个移动部件提供：
– 零反弹。
– 没有运动损失。
- 平滑旋转。
– 精确的可重复性。
– 整个旋转过程中连续的全扭矩。
• 获得专利的聚氨酯密封件用于：
– 长循环寿命和非润滑服务。
– 2500 万次以上的实际应用。
• 数百个标准选项和修改。
ROTARY VANE ACTUATORS:
• 16 base models with torque outputs from 87 in. lbs. to 1000 in. lbs.
• Rotations 45, 90, 180 & 270 degrees.
As compared to other rotary devices… Turn-Act Vane Actuators have:
• One moving part providing:
– ZERO Backlash.
– No loss of motion.
– Smooth Rotation.
– Precise Repeatability.
– Continuous full torque throughout the rotation.
• Patented Urethane seals for:
– Long cycle life and Non-lube service.
– Actual applications with 25 million cycles and more.
• 100s of standard options and modifications.
RTK执行器REact 15E系列介绍
用于调节控制和截止阀的电动执行器
• 由 3 项步进控制器或模拟信号 0/4-20 mA、0/2..10V 操作
• 双向强制开关
• 一个方向的限位开关，主轴缩回
• 防护等级 IP 65
• 阀位指示器
• 手动控制
Electric actuator for modulating control and shut/off valves
• operated by 3-term-step controllers or analogue signals 0/4-20 mA, 0/2..10V
• force switches for both directions
• limit switch for one direction, spindle retracted
• protection rating IP 65
• valve position indicator
• manual control
AL77是一种用于90°阀门操作的气动执行器。AL77可作为双作用(DA)或单作用(SR)。AL77设计了一个内部杠杆（Scotch Yoke原理），在操作开始和结束时提供更高的扭矩。
AL 77 is a pneumatic actuator for 90° operation of valves. AL 77 is available as double acting (DA) or single acting (SR). AL 77 is designed with an internal lever (the Scotch Yoke principle) which gives a higher torque at the start and end of the operation.
执行器其他常用型号：
J+J J4C-S20
J+J J4C-S35
J+J J4C-S55
J+J J4C-S85
J+J J4C-S140
J+J J4C-S300
J+J J4C-B20
J+J J4C-B35
J+J J4C-B55
J+J J4C-B85
J+J J4C-B140
J+J J4C-B300
VALBIA 84SR0010-SR52
VALBIA 82SR0070-SR115
VALBIA 84SR0010
VALBIA 84SR0012
VALBIA 84SR0075
VALBIA 84SR0014
VALBIA 84SR0018
VALBIA 82DA0014-DA85
RAINSSION RC-10Z
RAINSSION RC-15
RAINSSION RC-10 220V
RAINSSION RC-25Z
RAINSSION RC-50Z
RAINSSION RC-100
RAINSSION RC-200
RAINSSION RC-50
RAINSSION RC-5
TURN-ACT 122-1Y3-400-704
TURN-ACT 112-1Y3-100-400-A05-B00
TURN-ACT 112-1Y3-000-A00
TURN-ACT 112-151-300-500
TURN-ACT 112-1Y1-B00
TURN-ACT 112-3V2-000-A00t
TURN-ACT 112-1Y3-100-400-A05-B00
TESCOM ER5000FI-1
TESCOM ER5050SI-1
TESCOM ER5000SI-1
TESCOM ER5000SV-1
TESCOM ER3000SI-1
RECO-INOX ERVCR160S2
RECO-INOX ERVCR250S2
RECO-INOX ERVCR500S2
RECO-INOX ERVCR050S2
MAX-AIR MT40-3VI
MAX-AIR MT31.S4.F05-F07.CH17
MAX-AIR MT40-0EAE31
MAX-AIR MT40-3EAE31
MAX-AIR MT40-0EAE13
MAX-AIR MT31-0DAD31
MAX-AIR MT30-4DAD31
RTK 60E-030
RTK 15E-038B
RTK 60E-045
RTK 60E-090
RTK 60E-170
AXEL LARSSON AL77 210-DA F05-F07/14
AXEL LARSSON AL77 260-DA F10-12/27
AXEL LARSSON AL77 220-DA F05-F07/14
AXEL LARSSON AL77 230-DA F07-F10/17
AXEL LARSSON AL77 240-DA F07-F10/22
AXEL LARSSON AL77 250-DA F10-F12/22
AXEL LARSSON AL77 220-DA F05-07/14
AXEL LARSSON AL77 265-DA F12/27
AXEL LARSSON AL77 270-DA F14/36
AXEL LARSSON AL77 280-DA F12, F16/46
AXEL LARSSON AL77 280-DA F14/27
AXEL LARSSON AL77 240-SR F10-F12/22
AXEL LARSSON AL77 250-SR F10-F12/22
AXEL LARSSON AL77 260-SR F10-F12/27
DURA VALVE AP032ADA
DURA VALVE APO32BDA
DURA VALVE AP050BDA
DURA VALVE AP050ADA
DURA VALVE AP050ABDA
DURA VALVE AP063BDA
DURA VALVE AP063ADA
DURA VALVE AP063ABDA
DURA VALVE AP075BDA
DURA VALVE AP075ADA
DURA VALVE AP085BDA
DURA VALVE AP085ADA
DURA VALVE AP100DA
DURA VALVE AP100ADA
DURA VALVE AP115DA
DURA VALVE AP125DA
DURA VALVE AP125ADA
DURA VALVE AP145DA
DURA VALVE AP160DA
DURA VALVE AP200DA
DURA VALVE AP240DA
DURA VALVE AP270DA
如果您需要完整的执行器的相关技术咨询，请随时致电爱泽工业（021-3100 6702），或者访问网站www.ize-industries.com,我们将尽全力解决您的问题。
If you have any question for ACTUATOR，please feel free to dial 0086-21-3100 6702 or browse our website: www.ize-industries.com.
