Nominal sensing distance

4mm

Operanting distance

0...3,2mm

Standard target

12x12mm FE360

Correction Factor

copper: 0,41 / aluminium: 0,47 / brass: 0,56 / stainless steel: 1,15

Thermal drift of Sr

< 10%

Repeat Accuracy

5% (UB 24V Ta=23°C ±5°C)

Hysteresis

1 ... 20%

Outputs

Output type

PNP

Output Function

NO

Switching frequency

2kHz

Electrical data

Operating Voltage

10 - 30Vdc

No-Load supply current

≤ 10mA

Load current

≤ 200mA

Leakage current

≤ 10μA

Output voltage drop

≤ 1,8V @200mA

Max ripple content

≤10%

LED indicators

Yellow LED output state

Time delay before availability

50ms

Short-circuit protection

Yes (auto-reset)

Reverse Polarity Protection

Yes

Protection against inductive loads

Yes

Mechanical data

Mounting

Unshielded

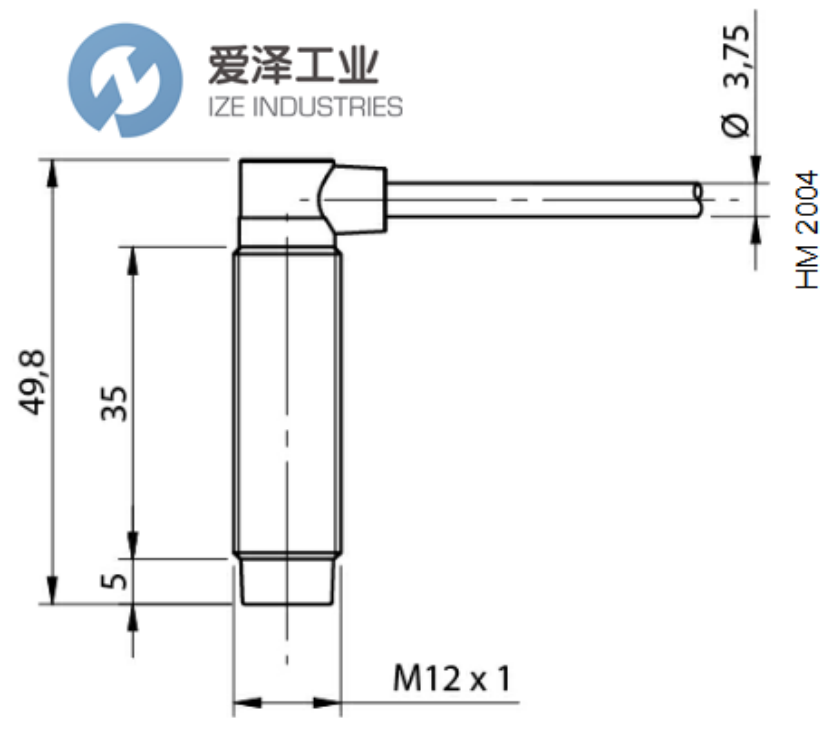

Dimensions

M12 x 1 / L = 49,8mm

Weight

70g

Housing Material

Nickel-plated brass

Connections

2m PVC Cable - Radial Output

Active Head Material

PBT

Tightening torque

10Nm

Operating temperature

-25°C...+70°C

Test/Approvals

Approvals

CE UR

EMC compatibility

IEC 60947-5-2

Shocks and vibrations

Vibration IEC 60068-2-6 / Shock IEC 60068-2-27

Degree of protection

IP67

Accessories

Supplied Accessories

2 nuts M12x1
