WEH成立于1973年，一直是流体系统连接技术的优质制造商，主要致力于开发快速连接器和特殊的解决方案。其高品质和创新的快速连接器用于压力，功能和泄露测试以及气态介质的填充和排气的所有重要行业，例如制造业，液压，汽车，天然气货气候和制冷等行业都可以使用。
TECHNICAL DATA | |
Characteristic | Basic version |
Max.allowable operating pressure PS | 35 bar |
Temperature range | -10℃ up to +80 ℃ |
Actuation | Manual actuation via sliding sleeve |
Material | Corrosion-resistant stainless steel |
Sealing material | Front seal of HNBR |
Design | With integrated shut-off valve |
WEH连接器TW110系列介绍
WEH TW110快速接头专为汽车空调设备（例如使用 R134A 制冷剂）的制冷剂加注和抽空而设计，符合SAE J639 标准。该接头的最大工作压力为35 bar，并完全采用不锈钢制造。因此，该接头非常适合连续运行。
TW110快速接头集成了一个截止阀，可最大限度地减少污染性制冷剂的泄漏。由于滑动套筒设计，操作便捷，无需费力手动拧紧，从而避免了重复性劳损 (RSI)。因此，工作流程显著简化，并可节省大量时间和成本。
WEH TW110 配备HNBR前端密封件。可根据要求提供其他密封材料。
应用
用于在生产过程中根据 SAE J639 标准对汽车空调设备进行制冷剂加注和抽空的快速接头。
特点
● 秒速连接
● 无需手动拧紧
● WEH爪式锁定机构
● 降低连接时间和成本
● 采用优质材料
The WEH TW110 Quick connector is specifically designed for filling and evacuating refrigerants,as for example R134A, of automotive air conditioning equipment acc. to SAE J639.The service connector is rated for a max. operating pressure of 35 bar and is completely made of stainless steel. Therefore, the connector is ideally suited for continuous operation.
The TW110 quick connector has an integrated shut-off valve reducing the release of polluting refrigerants to a minimum. Thanks to the high operating convenience offered by the sliding sleeve, tedious hand tightening causing RSl is a thing of the past. Thus workflows are significantly simplified and considerable time and cost savings are achieved.
The WEH TW110 is equipped with a HNBR front seal. Other sealing materials on request.
Application
Quick connector for filling and evacuating refrigerants of automotive air conditioning equipment acc. to SAE J639 during production
Features
● Connection in seconds
● No hand tightening required
● WEH Jaw locking mechanism
● Reduces connection times and costs
● High-grade materials

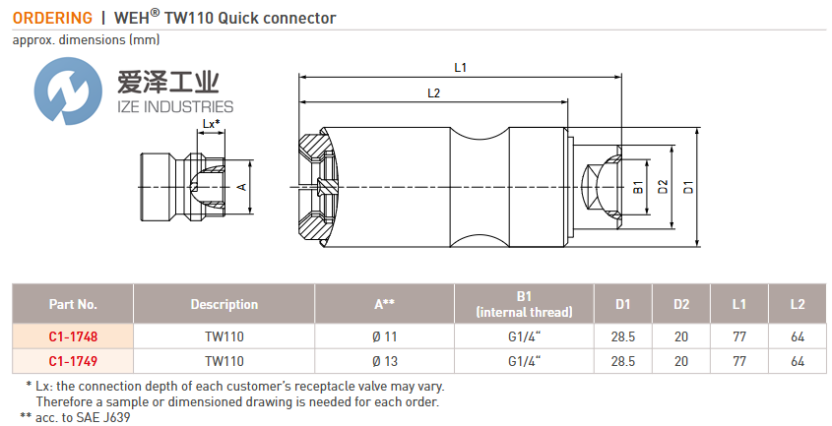

WEH连接器TW110系列规格尺寸
WEH连接器其他常用型号：
WEH C1-1749
WEH C1-1748
WEH C1-77826
WEH C1-1223
WEH C1-917
WEH C1-49969
WEH TW141
WEH TW221
WEH TW230
WEH connector NEW + ORIGINAL+ ONE YEAR WARRANTY
爱泽工业成立于2010年，定位于向先进制造工业提供高端制造技术和设备。代理经营世界先进的电气自动化、机械与传动、流体控制、仪器仪表、工具等产品。作为电气，液压以及气动解决方案的合作伙伴，我们利用我们的全球协作团队，为客户提供先进解决方案，市场知识以及相关增值服务来帮助优化客户的工作效率，提高可靠性和安全性，致力于成为工业产品和解决方案的优质渠道。
如果有任何关于WEH连接器C1-1749的疑问，请随时与我们沟通（021-31006702）。我们将尽全力解决您的问题。
If you have any question for WEH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: www.ize-industries.com.
WEH连接器TW110系列C1-1749技术参数及介绍
