石油 / 化工 / 水处理必看！阀门限位开关盒选型 + 原理速通（中英文）

在现代工业自动化中，精度和可靠性至关重要，尤其是在阀门系统方面。限位开关盒是确保阀门位置精确监控的关键组件之一。无论处理的是气动阀门自动化系统还是化工厂的复杂控制系统，这个小巧却必不可少的设备都能提供实时反馈，从而保证运行顺畅。

In modern industrial automation, precision and reliability are crucial, especially when it comes to valve systems. One vital component that ensures accurate valve position monitoring is the limit switch box. Whether you're dealing with pneumatic valve automation or complex control systems in chemical plants, this small but essential device offers real-time feedback that keeps operations running smoothly.

阀门系统中的限位开关盒是什么？

What is a Limit Switch Box in Valve Systems?

基本定义和用途

限位开关盒是一种安装在阀门执行器顶部的阀门位置反馈装置。其主要作用是清晰地指示阀门的位置，即阀门是开启还是关闭。这在自动化过程中尤为重要，因为操作人员和控制系统需要持续、实时地了解阀门的状态。

通过将执行器的机械运动转换为电信号，限位开关盒阀门位置指示器有助于维持运行效率和安全性。盒上的可视指示器通常显示阀门的当前状态，而内部开关则将信号发送到外部系统。

Basic Definition and Purpose

A limit switch box is a valve position feedback device mounted on top of a valve actuator. Its primary role is to provide a clear indication of the valve's position, whether it is open or closed. This is especially crucial in automated processes, where operators and control systems need constant, real-time updates about the valve's status.

By converting the mechanical motion of the actuator into an electrical signal, a limit switch box valve position indicator helps maintain operational efficiency and safety. The visual indicator on the box often displays the valve’s current state, while internal switches send signals to external systems.

限位开关盒内部组件

Components Inside a Limit Switch Box

尽管尺寸紧凑，限位开关盒内却包含几个关键组件：

• 微动开关：由执行器的运动触发，并发送与阀门位置相对应的电信号。

• 接线端子：提供开关与控制系统之间线路的连接点。

• 机械凸轮：安装在执行器轴上，这些凸轮旋转并在预定位置啮合微动开关。

• 指示器：用于显示阀门的开启或关闭状态的视觉辅助装置，便于本地监控。

Despite its compact size, a limit switch box houses several key components:

• Micro Switches: These are triggered by the actuator’s movement and send electrical signals corresponding to the valve's position.

• Terminal Strips: These provide connection points for wiring between the switches and the control system.

• Mechanical Cams: Attached to the actuator’s shaft, these cams rotate and engage the micro switches at predetermined positions.

• Indicator: A visual aid that shows the open or closed status of the valve, which is useful for local monitoring.

阀门限位开关盒的工作原理是什么？

How Does a Valve Limit Switch Box Work?

与气动执行器集成

在气动阀门系统中，限位开关盒直接与执行器集成。当执行器移动以打开或关闭阀门时，开关盒内部的凸轮旋转。这些凸轮在特定角度啮合微动开关，触发微动开关发送开/关反馈。

这种集成对于阀门的自动化操作至关重要。反馈确保执行器已完成其任务，从而能够在未发生预期动作时及时进行调整或发出警报。

电信号传输

微动开关触发后，会向控制室或PLC（可编程逻辑控制器）系统发送电信号。该信号用于确认阀门位置，操作人员可以监控该位置，或将其用于自动化后续流程。

本质上，这就是阀门位置指示器限位开关盒在大型系统中通信的方式。它连接了机械执行器和自动化控制的数字世界。

Integration with Pneumatic Actuators

In pneumatic valve systems, a limit switch box integrates directly with the actuator. When the actuator moves to open or close the valve, the internal cams inside the switch box rotate. These cams engage the micro switches at specific angles, triggering them to send on/off feedback.

This integration is critical for automated valve operation. The feedback ensures that the actuator has completed its task, enabling timely adjustments or alerts if the expected movement doesn't occur.

Electrical Signal Transmission

Once a micro switch is triggered, it sends an electrical signal to a control room or PLC (Programmable Logic Controller) system. This signal provides confirmation of the valve's position, which can be monitored by operators or used to automate further processes.

In essence, this is how a valve position indicator limit switch box communicates within larger systems. It bridges the mechanical world of actuators with the digital world of automated control.

阀门限位开关盒的类型

Types of Limit Switch Boxes for Valves

不同的环境和应用需要不同类型的限位开关盒。以下是几种最常见类型的介绍，以及它们与阀门位置指示器类型的对应关系：

机械式与接近式（电感式/电容式）

• 机械式限位开关盒使用机械凸轮和开关进行位置传感。

• 接近式限位开关盒依靠电感式或电容式传感器，无需物理接触即可检测阀门位置。它们非常适合需要最大限度减少磨损的环境。

防风雨型与防爆型外壳

• 防风雨型限位开关盒设计用于抵御户外环境因素，因此适用于水处理和暖通空调系统等应用。

• 防爆型外壳对于石油天然气和化工厂等存在易挥发性气体的行业至关重要。

在气动阀门自动化系统中，选择合适的限位开关盒对于实现最佳运行至关重要。这些限位开关盒用作反馈机制，向中央控制系统发出阀门开启或关闭位置的警报。

在为气动阀门自动化选择限位开关盒时，应考虑应用环境、所需精度和安全要求。

带或不带 LED 指示灯

现代设计的限位开关盒通常配备 LED 位置指示灯，即使远距离也能轻松进行目视确认。这进一步提升了操作的便捷性和安全性。

Different environments and applications call for different types of limit switch boxes. Here's a breakdown of the most common variants, including how they relate to types of valve position indicators:

Mechanical vs Proximity (Inductive/Capacitive)

• Mechanical limit switch boxes use physical cams and switches for position sensing.

• Proximity-based limit switch boxes rely on inductive or capacitive sensors, which detect the valve position without physical contact. These are ideal in environments where minimal wear and tear is desired.

Weatherproof vs Explosion-Proof Enclosures

• Weatherproof limit switch boxes are designed to withstand outdoor elements, making them suitable for applications like water treatment and HVAC systems.

• Explosion-proof enclosures are essential in industries like oil & gas and chemical plants, where volatile gases are present.

In pneumatic valve automation, the selection of an appropriate limit switch box is essential for optimal functioning. These boxes serve as feedback mechanisms, alerting a central control system to open or closed positions.

The application environment, necessary accuracy, and safety requirements should all be taken into consideration when choosing a limit switch box for pneumatic valve automation.

With or Without LED Indicators

Modern designs often feature a limit switch box with an LED position indicator, allowing for easy visual confirmation even from a distance. This adds an extra layer of operational convenience and safety.

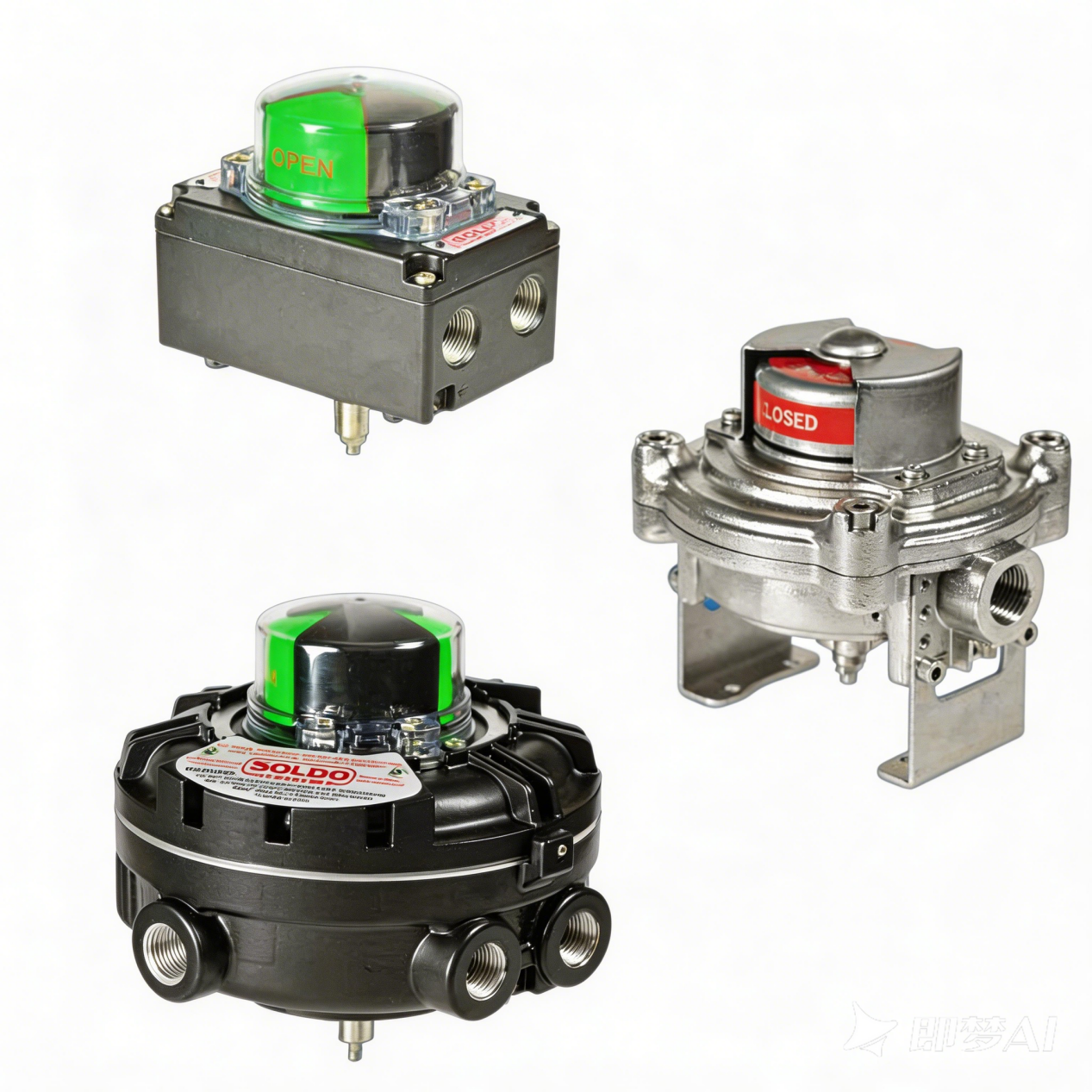

限位开关类型

Types of Limit Switches

防爆型限位开关盒

专为可能存在爆炸性气体的危险区域而设计。通过安全认证。

防风雨型限位开关盒

可承受恶劣的户外环境，例如灰尘、潮湿和极端温度。

金属外壳限位开关盒

结构坚固，使用寿命长，适用于严苛的工业环境。

塑料外壳限位开关盒

轻便耐腐蚀，是环境要求不高或对成本要求较高的应用的理想选择。

Flame Proof Limit Switch Box

Designed for use in hazardous areas where explosive gases may be present. Certified for safety.

Weatherproof Limit Switch Box

Built to withstand harsh outdoor conditions like dust, moisture, and extreme temperatures.

Metal Body Limit Switch Box

Offers robust construction and long service life in demanding industrial environments.

Plastic Body Limit Switch Box

Lightweight and corrosion-resistant, ideal for less rugged conditions or cost-sensitive applications.

工业领域的关键应用

Key Applications in Industrial Settings

工业限位开关盒在执行器领域的应用遍及多个行业。例如以下：

石油和天然气：用于监测管道流量和安全系统。

水处理厂：确保净化阶段阀门的正常运行。

暖通空调系统：用于楼宇自动化中的空气和流体流量控制。

化工厂：需要精确的阀门以避免有害的化学反应。

在上述所有行业中，可靠的阀门位置反馈装置的重要性都不容忽视。

The application of industrial limit switch boxes for actuators extends across multiple industries. Here are some instances.

Oil and gas: To monitor pipeline flow and safety systems.

Water Treatment Plants: Ensure proper valve operation during the purification stages.

HVAC systems: control air and fluid flow in building automation.

Chemical plants: require accurate valves to avoid harmful chemical reactions.

In each of these industries, the need for dependable valve position feedback devices cannot be emphasized.

要点总结

Key Takeaways

• 限位开关盒是自动化系统中至关重要的阀门位置反馈装置。

• 它包含微动开关、凸轮和指示器，用于显示和报告阀门状态。

• 限位开关盒有多种形式，包括机械式、接近式、防风雨式和带 LED 指示灯式。

• 它们广泛应用于石油天然气、水处理和暖通空调等行业。

• A limit switch box is a vital valve position feedback device used in automated systems.

• It contains micro switches, cams, and indicators to show and report valve status.

• Limit switch boxes come in various forms, mechanical, proximity-based, weatherproof, and with LED indicators.

• They are widely used in sectors like oil & gas, water treatment, and HVAC.

常见问题解答 (FAQ)

Frequently Asked Questions (FAQs)

阀门上的限位开关盒有什么作用？

答：限位开关盒提供阀门开启或关闭位置的反馈，并将电信号发送给控制系统或操作人员。

可以将限位开关盒与气动执行器一起使用吗？

答：可以。限位开关盒专为与气动执行器集成而设计，可提供精确的位置反馈。

自动阀门是否需要限位开关盒？

答：绝对需要。如果没有限位开关盒，就无法确认阀门是否按预期移动，这会影响系统的性能和安全性。

What does a limit switch box do on a valve?

Ans: A limit switch box provides feedback on the valve's open or closed position and sends electrical signals to control systems or operators.

Can I use a limit switch box with a pneumatic actuator?

Ans: Yes, limit switch boxes are specifically designed to integrate with pneumatic actuators for accurate position feedback.

Is a limit switch box required for automated valves?

Ans: Absolutely. Without it, there's no way to confirm whether a valve has moved as expected, which can affect system performance and safety.
