旋转接头入门：定义、工作原理及其为何是工业效率的核心之一（中英文）

无论是造纸、塑料包装印刷、化学加工，还是操作复杂的机床系统，在固定部件和旋转部件之间输送流体都是一项持续的工程挑战。

Whether it is paper manufacturing, plastic packaging printing, chemical processing, or operating complex machine tool systems, transferring fluids between stationary and rotating components is a constant engineering challenge.

旋转接头是如何构造的？

How is a rotary joint constructed?

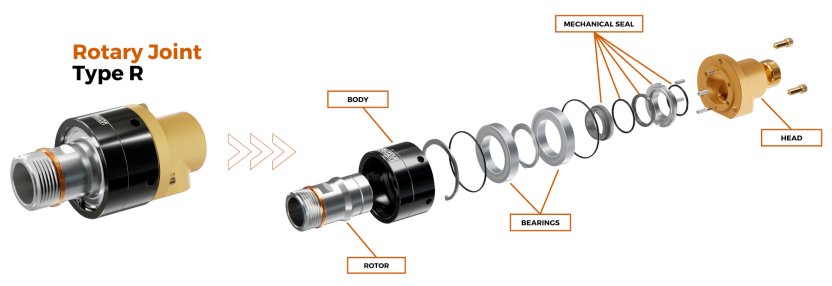

旋转接头并非简单的管道，而是由一系列精密设计的部件组成：

壳体（本体）：与供液管道连接的固定部件。它容纳流体并提供结构支撑。

转子（轴/接头）：直接与旋转机械连接的部件，采用螺纹或法兰连接。

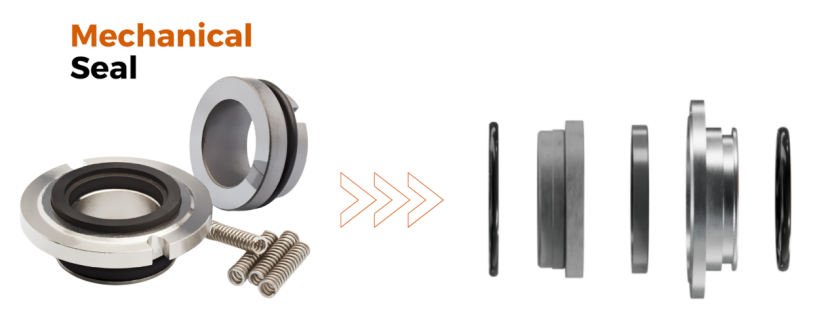

机械密封：接头的核心部件。它防止流体泄漏到环境中。密封质量很大程度上决定了其使用寿命。

轴承/导轨：支撑转子在壳体内的旋转，确保对准并减少摩擦。

A rotary joint is not a simple pipe, but an assembly of precisely engineered components:

Housing (Body): The stationary part connected to the supply piping. It contains the fluid and provides structural support.

Rotor (Shaft/Nipple): The component directly connected to the rotating machinery, with threaded or flanged connections.

Mechanical Seal: The core of the joint. It prevents fluid from escaping into the environment. Seal quality largely determines service life.

Bearings/Guides: Support rotor rotation within the housing, ensuring alignment and reducing friction.

旋转接头是什么？

What exactly is a rotary joint?

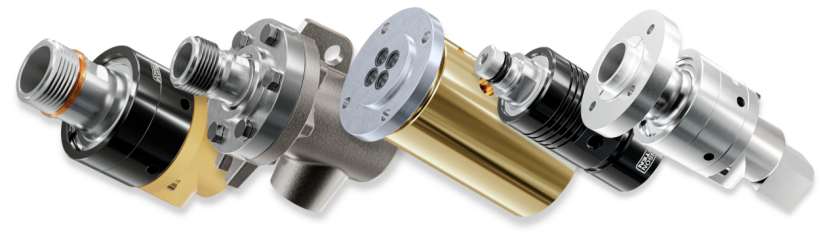

旋转接头，也称为旋转连接件，是一种精密机械密封装置，可将流体（液体或气体）从固定的供液管路输送到旋转的机械部件。

例如，造纸厂中的加热辊或需要冷却液的机床主轴：冷却液必须在部件高速旋转的情况下进入，且不能泄漏，同时还要保持恒定的压力。旋转接头正是实现这一目标的接口。

常见的行业术语包括：

- 旋转接头（通用术语）

- 旋转连接件（通常用于高速应用或非蒸汽流体）

- 蒸汽接头

- 水接头

- 液压旋转阀组

A rotary joint, also known as a rotary union, is a precision mechanical sealing device that allows the transfer of a fluid (liquid or gas) from a stationary supply line to a rotating machine component.

Consider a heated roll in a paper mill or a machine tool spindle requiring coolant: the fluid must enter the component while it rotates at high speed, without leakage and while maintaining constant pressure. The rotary joint is the interface that makes this possible.

Common industry terms include:

- Rotary joints (generic term)

- Rotary unions (often used for high-speed applications or non-steam fluids)

- Steam joint

- Water joint

- Hydraulic rotary manifold

为什么密封件是最关键的部件？

Why is the seal the most critical element?

在运行过程中，密封件同时承受流体压力、接触面摩擦和温度变化的影响。高转速、腐蚀性介质或频繁的热循环都会加速磨损。

一个常被低估的因素是，密封件的成本仅占实际故障成本的一小部分。密封件失效时，问题不仅仅在于更换部件，还涉及对工艺效率、能源消耗、安全性和生产连续性的影响。从这个意义上讲，旋转接头的性能取决于其密封系统的性能。

During operation, the seal is simultaneously exposed to fluid pressure, friction between contact surfaces, and temperature variations. High rotational speeds, aggressive media, or frequent thermal cycles inevitably accelerate wear.

A frequently underestimated factor is that the seal cost represents only a small fraction of the true failure cost. When a seal fails, the issue is not just component replacement, but the impact on process efficiency, energy consumption, safety, and production continuity. In this sense, a rotary joint is only as good as its sealing system.

什么是平衡密封？

What is a balanced seal?

平衡密封旨在降低流体压力对密封面接触力的影响。在这种设计中，密封载荷主要由校准弹簧决定，而工作压力的影响有限。

这使得密封性能更加稳定，磨损更小，且更易于预测，尤其适用于水和冷却液应用，但也适用于蒸汽或气体应用。

Balanced seals are designed to reduce the effect of fluid pressure on the contact force between sealing faces. In these designs, sealing load is mainly determined by calibrated springs, while operating pressure has limited influence.

This results in more stable behavior, reduced wear, and more predictable performance, particularly in water and cooling fluid applications, but also with steam or gases.

自支撑式与外支撑式旋转接头：如何选择？

Self-supported vs. externally supported rotary joints: how to choose?

自支撑式接头中，壳体直接安装在轴或气缸上，支撑结构集成在接头本身。这种结构紧凑的解决方案适用于许多标准应用。

外支撑式接头使用支架或拉杆来支撑壳体，从而减少传递到机器轴上的载荷。这种结构通常适用于大直径、高转速或严苛的运行条件。

正确的选择始终取决于应用场景和设备布局。

In self-supported joints, the housing is mounted directly on the shaft or cylinder, with support integrated into the joint itself. These compact solutions suit many standard applications.

Externally supported joints use brackets or tie rods to support the housing, reducing loads transmitted to the machine shaft. This configuration is often preferred for large diameters, high speeds, or demanding operating conditions.

The correct choice always depends on the application context and plant layout.

为什么旋转接头对生产至关重要？

Why are rotary joints essential to your production?

它不仅仅是“输送流体”。设计合理的旋转接头会影响工业生产的四大关键支柱：

能源和热效率

在纺织或造纸等行业，热传递（通过蒸汽或导热油）必须均匀。低效的接头或虹吸系统不良会在辊筒上形成冷点，增加废料和能源消耗。

可靠性和减少停机时间

密封件是易损件，但低质量的旋转接头会过早失效，导致泄漏，进而损坏其他机器部件或造成整条生产线停产。故障的真正代价并非接头本身的价格，而是工厂的停机时间。

工作场所安全

处理高压流体、过热蒸汽或 300°C 的导热油存在严重风险。高质量的旋转接头专为关键环境而设计，确保危险流体得到妥善密封。

OEM 定制

许多应用需要定制解决方案。无论是用于机器人的多通道旋转关节（同时输送空气、油和电信号），还是用于机床的超高速关节，定制能力都能使供应商成为战略合作伙伴。

It is not just about “transferring a fluid.” A properly engineered rotary joint impacts four key pillars of industrial production:

Energy and Thermal Efficiency
In industries such as textile or paper, heat transfer (via steam or thermal oil) must be uniform. Inefficient joints or poor siphoning systems create cold spots on rolls, increasing scrap and energy consumption.

Reliability and Reduced Downtime
Seals are wear components, but low-quality rotary joints fail prematurely, causing leaks that may damage other machine components or shut down entire lines. The real cost of failure is not the joint price, but factory downtime.

Workplace Safety
Handling high-pressure fluids, superheated steam, or 300 °C thermal oil involves serious risks. High-quality rotary joints are designed for critical environments, ensuring hazardous fluids remain properly contained.

OEM Customization
Many applications require tailored solutions. Whether it is a multi-pass rotary joint for robotics (simultaneously carrying air, oil, and electrical signals) or an ultra-high-speed joint for machine tools, customization capability turns a supplier into a strategic partner.

常见问题解答：每位维护经理都会问的技术问题

FAQ: Technical questions every Maintenance Manager asks

如何选择合适的旋转接头？

仅凭管道直径不足以做出准确选择。工程师会评估以下因素：

流体类型：蒸汽、水、油、空气等。

转速（RPM）：对轴承和密封技术的选择至关重要。

压力和温度：决定壳体和密封材料的选择。

所需流量：避免过大的压力损失。

How do I select the correct rotary joint?
Pipe diameter alone is not sufficient. For accurate selection, our engineers evaluate:

Fluid type: steam, water, oil, air, etc.

Rotational speed (RPM): critical for bearing and seal technology selection.

Pressure and temperature: define housing and seal materials.

Required flow rate: to avoid excessive pressure losses.

为什么旋转接头会泄漏？

主要原因包括：

- 接头与机器转子未对准

- 刚性管道而非柔性金属软管造成的管道应力

- 流体质量差，杂质或水垢会损坏密封面

- 使用公差不足的非原厂备件

Why does my rotary joint leak?
Main causes include:

- Misalignment between joint and machine rotor

- Piping stresses from rigid pipes instead of flexible metal hoses

- Poor fluid quality with debris or scale damaging seal faces

- Use of non-OEM spare parts with inadequate tolerances

什么是多通道旋转接头？

多通道旋转接头是一种设计用于同时通过独立通道处理多种流体的旋转接头。当单个旋转轴需要提供不同功能（例如液压和气动）时，多通道旋转接头至关重要。它使用软密封件（O 形圈）或特殊唇形密封件来防止通道之间的流体交叉。

What is a multi-pass rotary joint?
A rotary union designed to handle multiple fluids simultaneously through separate passages. Essential where a single rotating axis must supply different functions (e.g. hydraulics and pneumatics). Soft seals (O-rings) or special lip seals are used to prevent cross-over between passages.

基本技术词汇表

Essential technical glossary

防旋转杆：刚性杆，防止接头壳体随转子旋转。

虹吸管：用于排出冷凝水或废气的内部管道系统（固定式或旋转式）。

Q型法兰：快速断开法兰，可显著简化维护。

DuraSeal™：采用弹性体或塑性体（PTFE）材料的先进密封技术，适用于动态应用。

流量指示器：用于监测流体流动并检测气泡或杂质的可视化装置。

Anti-Rotation Rod: Rigid rods preventing the joint housing from rotating with the rotor.

Syphon: Internal piping system (stationary or rotating) allowing condensate or exhaust fluid removal.

Q-Flange: Quick-disconnect flange that significantly simplifies maintenance.

DuraSeal™: Advanced sealing technology using elastomeric or plastomeric (PTFE) materials for dynamic applications.

Sight Flow Indicator: Visual device to monitor fluid flow and detect bubbles or debris.
